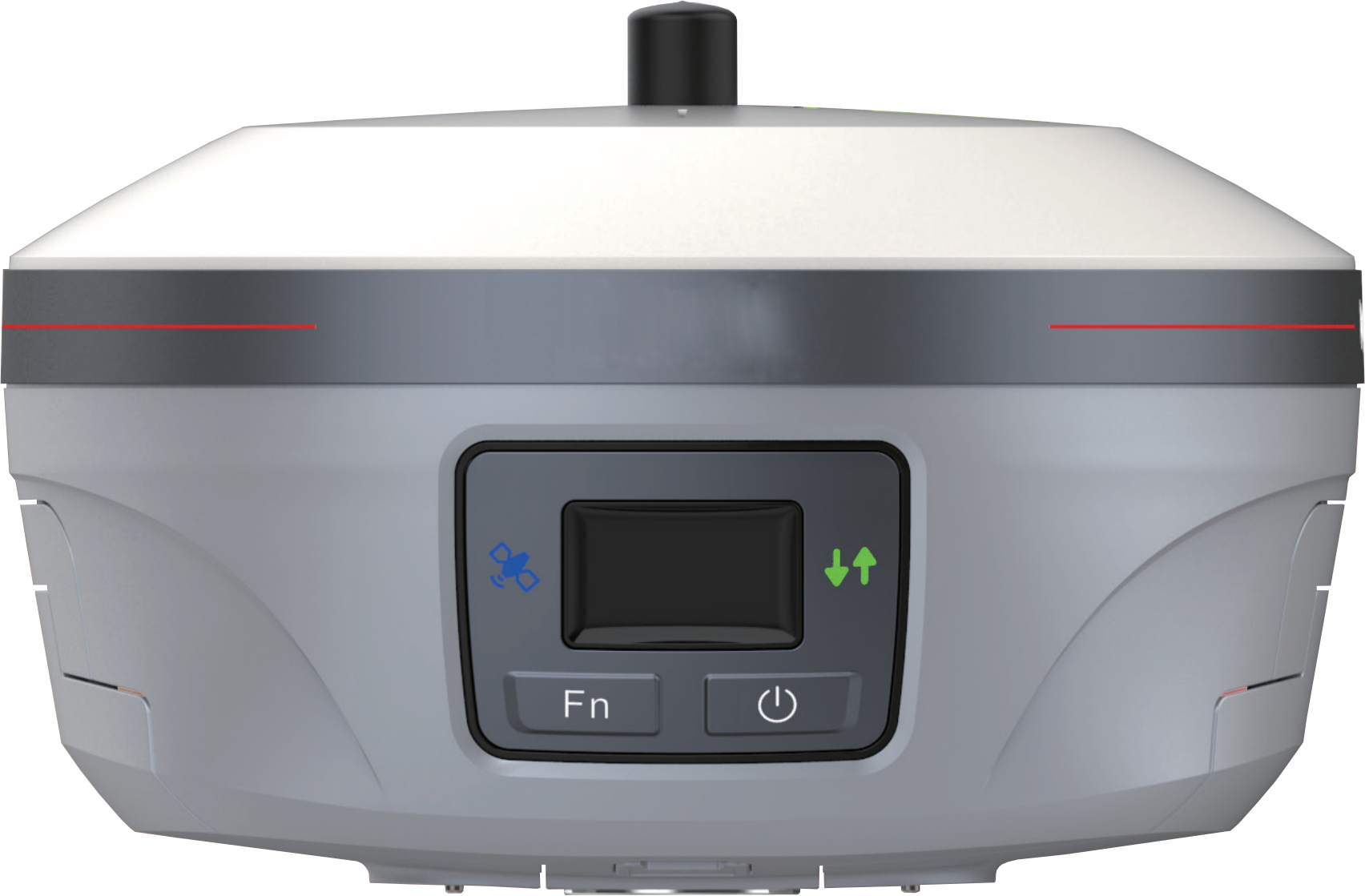

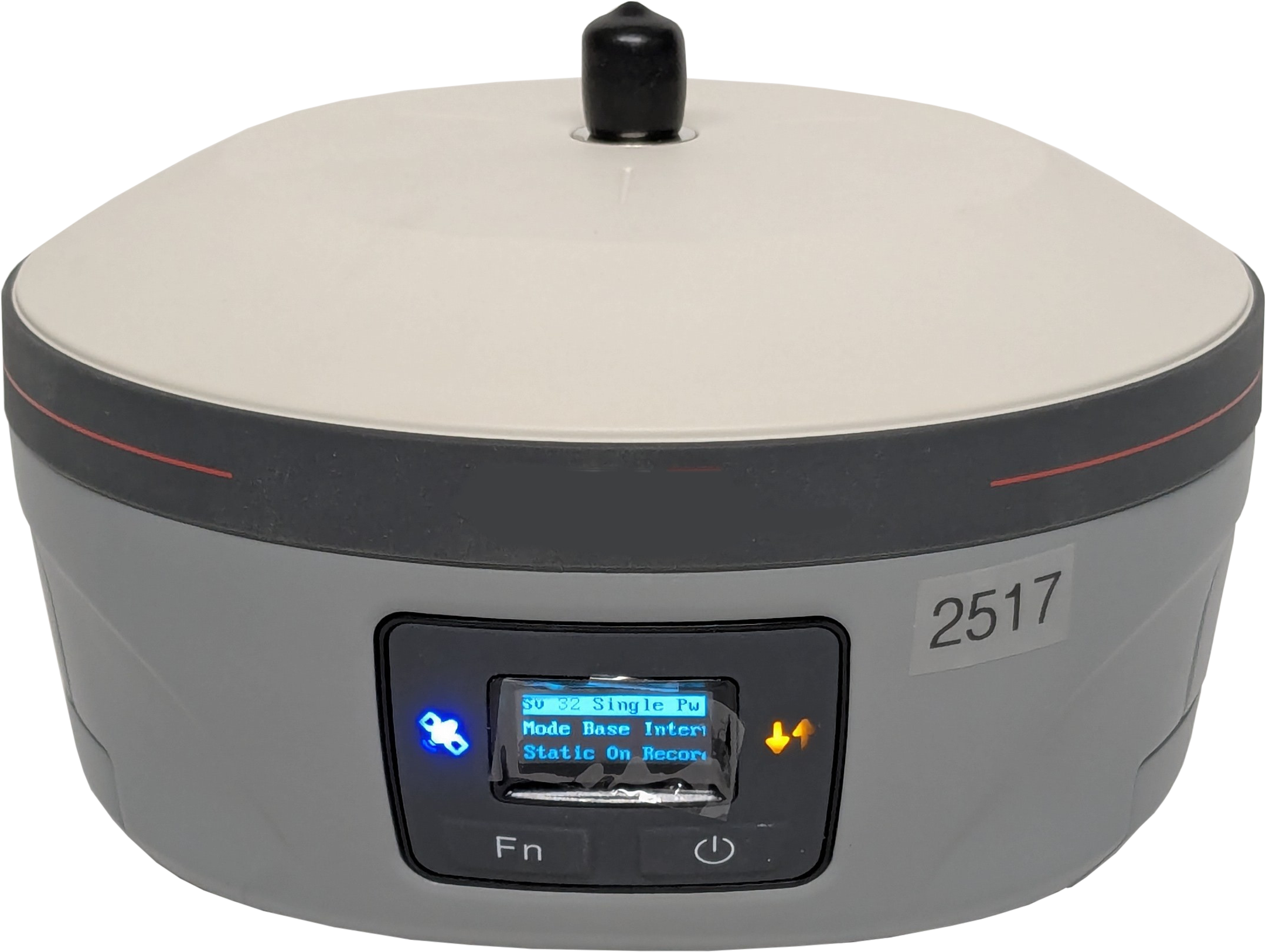

eBase 5W GNSS RTK receiver

Jump to: [ Datasheet ] [ Pictures ] [ Pricing ]

Rugged Versatile GNSS Base Station

5W Built-in UHF

10+ Mi. Coverage

12 Hr+ Operating Time

Industrial Grade Design

eBase is the GNSS base that you can rely on to survive drops from Tripods and keep working in rain and snow for long workdays with a 5 watt internal transmit radio.

With IP67 water and dust ingress protection and downward opening battery doors, the eBase is designed to work the real world, on real jobs.

Fully integrated to meet most UHF base needs, eBase eliminates cables, batteries, external radios, external antennas while providing high powered corrections for up to 15 miles.

A FCC License is required for operation, see [ FIT ]

Price	[ eBase Prices ]
Ports	7-pin Lemo: power + RS232 serial
UHF Radio	450 - 470 MHz, 5 watt, Transparent, TT450, 3AS
4G LTE Modem	EG25 LTE Cat-4 FDD in bands 1,2,3,4,5,7,8,12,13,18,19,20,25,26,28
Broadcast Message	RTCM2.x, RTCM3.2, CHC516, RTD, CMR
GNSS Channels	UM980, 1608
Tracking	GPS L1C, A, L2P Y, L2C, L5 GLONASS L1, L2 Galileo E1, E5a, E5b, E6 BeiDou B1I, B2I, B3I, B1C, B2a, B2b QZSS L1, L2, L5, L6 PPP B2b-PPP SBAS L1, L5
Tilt sensor	E-Bubble leveling
Datasheet	[ eBase DS ]
External Power Cable	[ Power Cable ]

Start Projects in Seconds

Full GNSS tracking: 1608-channels taking advantage of GPS, GLONASS, Galileo and BeiDou (with BeiDouIII) providing robust data quality and unequaled under canopy performance and short time-to-fix in challenging environments:

GPS L1C, L1A, L2P(Y), L2C, L5; GLONASS G1,G2,G3; Galileo E1, E5a, E5b, E6, E6 HAS;
BeiDou B1I, B2I, B3I, B1C, B2a, B2b; QZSS L1C/A, L1C, L2C, L5; PPP B2b-PPP; SBAS L1C/A

IMU Tilt Detection: Detects inadvertent movement through and stops survey

Radio: 5-watt Internal UHF Radio. Top mounted UHF antenna maximizes range. Can be used to retransmit network corrections.

12-hour operation at full power: on 2 removable, internal batteries. No need for a heavy external battery or cables.

Internal cell modem: for APIS, TCP/IP, or internal NTRIP Caster Base use.

Storage: 8-GBytes of internal memory to store observation files.

Input/Output: 7-pin LEMO for external power, RS-232 external radio.

Powerful base station: The perfect match for Visual receivers.

eBase Pricing

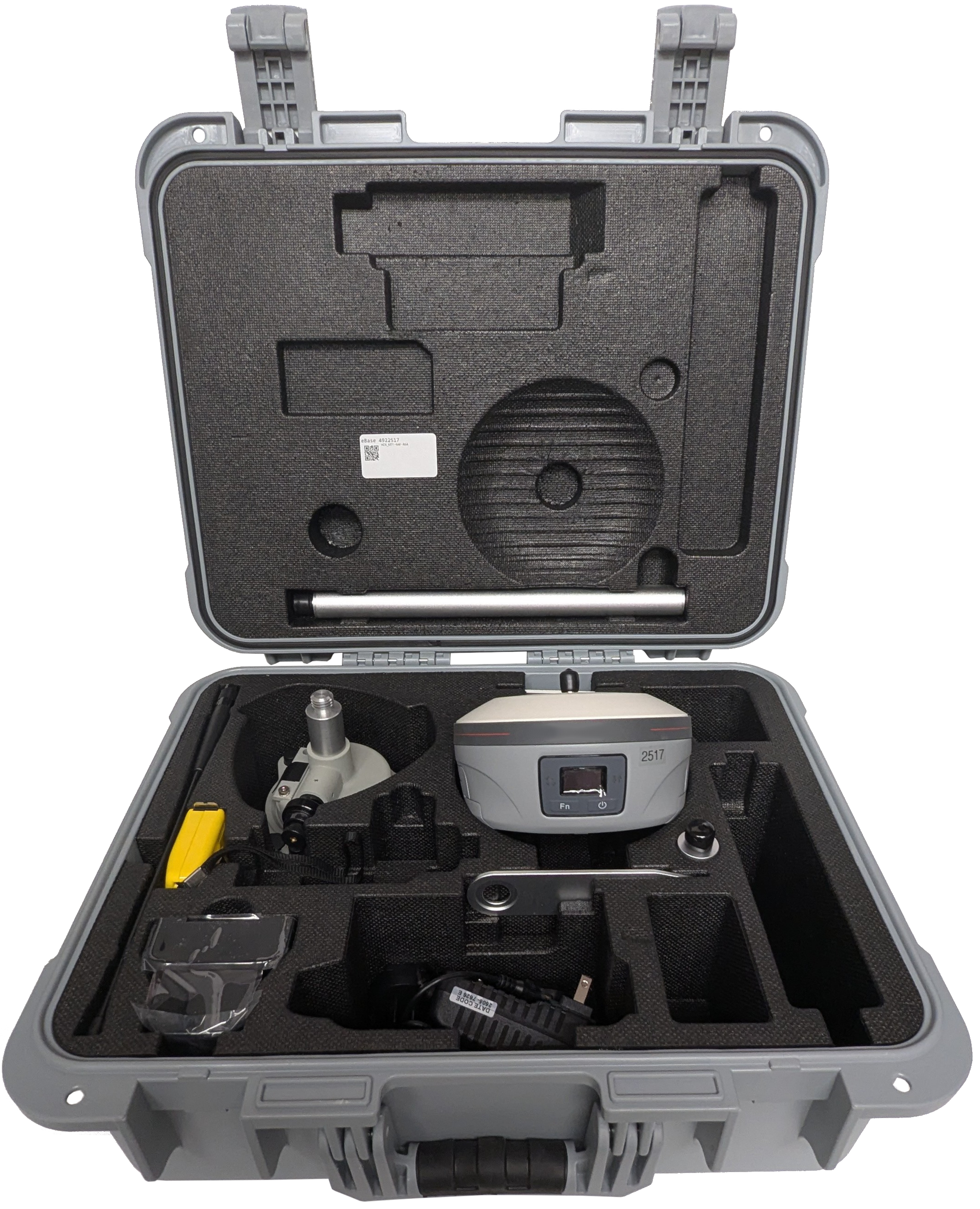

Every eBase Kit includes

A10502980903070005 eBase GNSS Receiver qty 1
4101 030 004 UHF Whip Antenna(450-470MHz KQT450GT) qty 1
4102 090 001 Tribrach Adapter qty 1
4102 040 003 Tribrach w/ Optical qty 1
4102 070 005 H.I. Tape qty 1
4102 010 002 Extension Pole(30cm) qty 1
4102 070 001 Auxiliary H.I. Tool (Silver) qty 1
4104 030 041 7000mAh Lithium Battery qty 2
4104 070 040 C300 Battery Charger W/Power Adapter with Cord qty 1
4106 080 219 Transport Hard Case qty 1

NOTE: All receivers are fully activated and include UHF Radio, IMU tilt compensation and a hard transport case. UHF and Cellular are not options, they are included with every receiver.

These bundle prices may be modified at any time, please call for a written estimate to lock in prices.

Eligible for [ iGage 10-24 financing ]

Note: Prices are subject to change, prices are dependent on tariffs, call us and get a written estimate to lock in pricing for 30-days.
