The brightest tablet on the market.

TRIPLTEK 9 Pro

The Tripltek 9 Pro provides a fast, bright, reliable platform for running Android field software like LandStar8 and X-PAD.

  • Ultra-Bright 1300 cd/m² sustained brightness: best in class

  • The brightest tablet on the market, over three times brighter than other mobile devices

  • Operates under direct sunlight, no dimming, no overheating

  • 4K Ready High-Resolution Display.

  • High Color accuracy with wide Gamut.

  • Polarized screen for operation with polarized glasses.

  • Glove and Wet touch.

  • 12,200 mAH battery, 10 hour life at maximum brightness, fast 3.5 hour charging from 1%.

Bracket and Pole Mount

Our all-metal tablet bracket, adjustable arm and pole clamp won't slide around or down the pole.

Fast Processor

  • Hyper-engine Octa-Core 64 bits chip
  • 3D 4K Ready GPU
  • Ai Accelerator

Operating System

  • Android Google 12 Certified
  • Google stock version with no bloat ware

Ultra Resolution Cameras

Back Camera:

  • 48 Megapixel 27mm equivalent focal length
  • 4K Video recording up to 48MP @ 30fps

Front camera:

  • 20 Megapixel Front camera
  • 1080p video

Connectivity

Cellular

  • 4G LTE Unlocked Smartphone, Cellular service calls, and Data
  • Data and voice capable with earpiece integrated
  • FDD-LTE BANDS: B1/2/3/4/5/7/8/12/13/14/17/18/19 20/25/26/28/66/71
  • ​TD-LTE BANDS: B 38/39/40/41
  • ​All required bands for full compatibility with Verizon, AT&T, and T-Mobile in the USA.
  • Compatible with all worldwide carriers.
  • Dual Nano SIM card slots
  • PTCRB Certified for all carriers
  • GCF Certified for all carriers

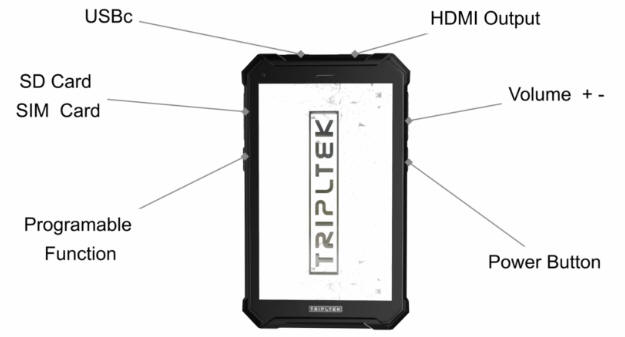

Full-size HDMI Output Port

HDMI Input compatible through USB-C

USBc 3.0 port with 20GB speeds

HDMI port allows screen mirroring to any HDMI equipped screen

High accuracy internal GPS

Wi-Fi 5 Dual-band (2.4GHz/5Ghz)

Bluetooth 5.0

NFC connectivity

Sensors

Direction Sensor, Gravity sensor, Magnetic Field Sensor, Motion sensor, Rotation, Vector, Ambient Light sensor, Accelerometer sensor, Compass

Rugged

Waterproof: IP68 closed flaps 2 meters for 4 hours.

Dustproof: IP68 closed flaps

Drop proof: multiple drops from 4′ (1.2 –1.5 m) onto flat concrete surface

Shake-proof: 1-19Hz/1.0mm; 19-200Hz/1.0g Operating temperature: -4°F to 124°F (-20°C to 51°C)

​Storage Temperature: -20°F to 170°F (-28°C to 76°C)

Certification: Military Standard 810G

Method 500.5 Low Pressure (Altitude); Method 501.5 High Temperature; Method 502.5 Low Temperature; Method 503.5 Temperature Shock; Method 506.5 Rain; Method 507.5 Humidity; Method 510.5 Sand and Dust; Method 512.5 Immersion; Method 514.6 Vibration; Method 516.6 Shock

Physical

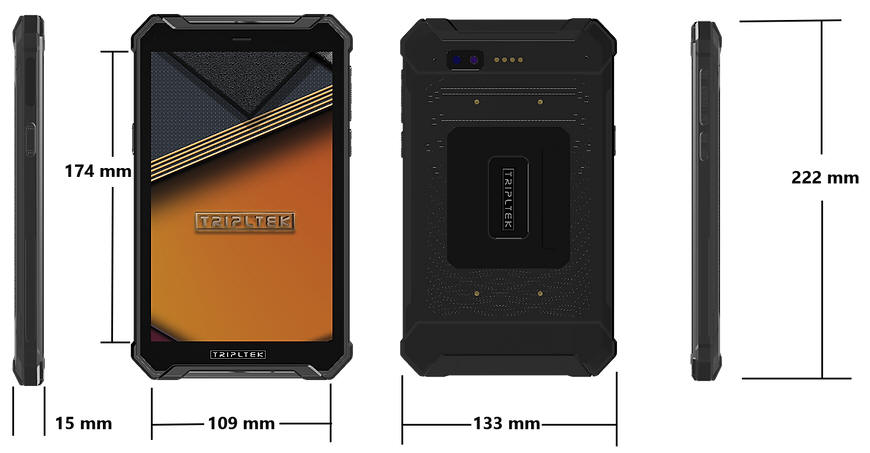

Size:8.75(22cm) x 5.25(13cm) x 0.6(1.5cm) Inches (L×W×H)

Weight: 1.3 pounds / 590 grams

Durable, chemical- and shock-resistant design

Easy-to-grip

Impact-absorbing over-molded bumpers

Thermoplastic polyurethane injection and aluminum construction



Tripltek 9 Pro Pricing

Tripltek 9 Pro

  includes bracket, adjustable arm, pole clamp

+

$ 1,255

Tripltek 9 Pro w/ LandStar8 Bundle

  includes bracket, adjustable arm, pole clamp
  LandStar8 GNSS

+ +

$ 1,745
Bundle discounts when purchased with GNSS receivers

-call-

FAQ's

simbase SIM Card Installation

[ watch the video on how to install and provision a simbase card ]

Connecting to a computer

[ Switching USB connection mode ]
