SG6 Visual Stakeout + Survey IMU-RTK GNSS

Jump to: [ Datasheet ] [ Visual Rover Comparison ] [ eBase Local Base ] [ Pictures ] [ Pricing ]

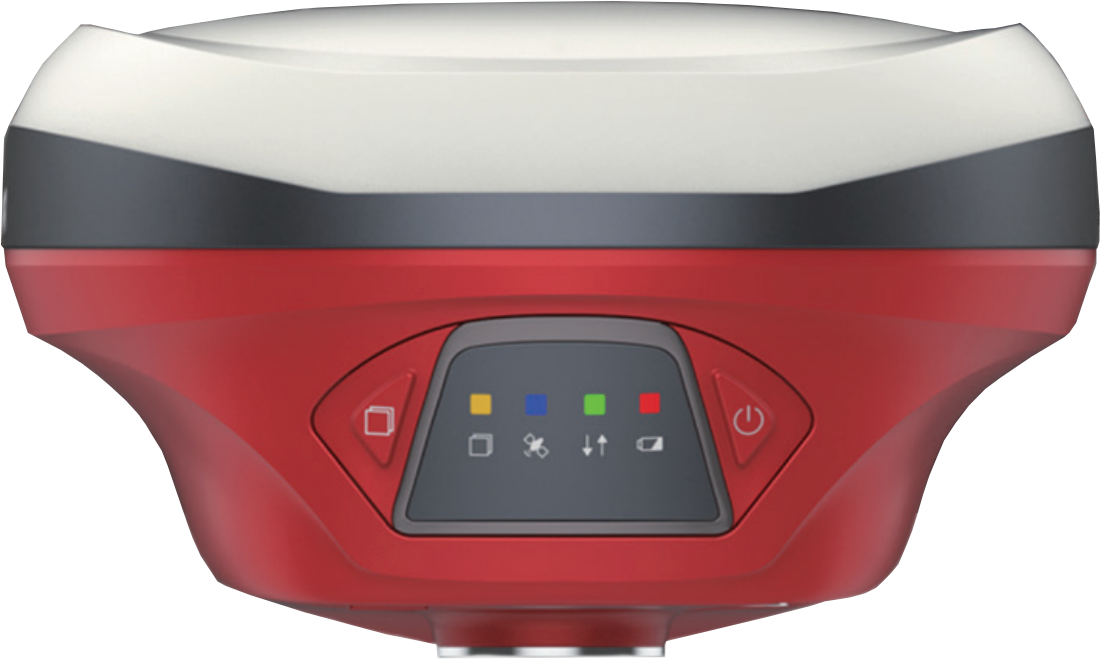

The SG6 visual receiver changes everything about staking and storing points in the field!

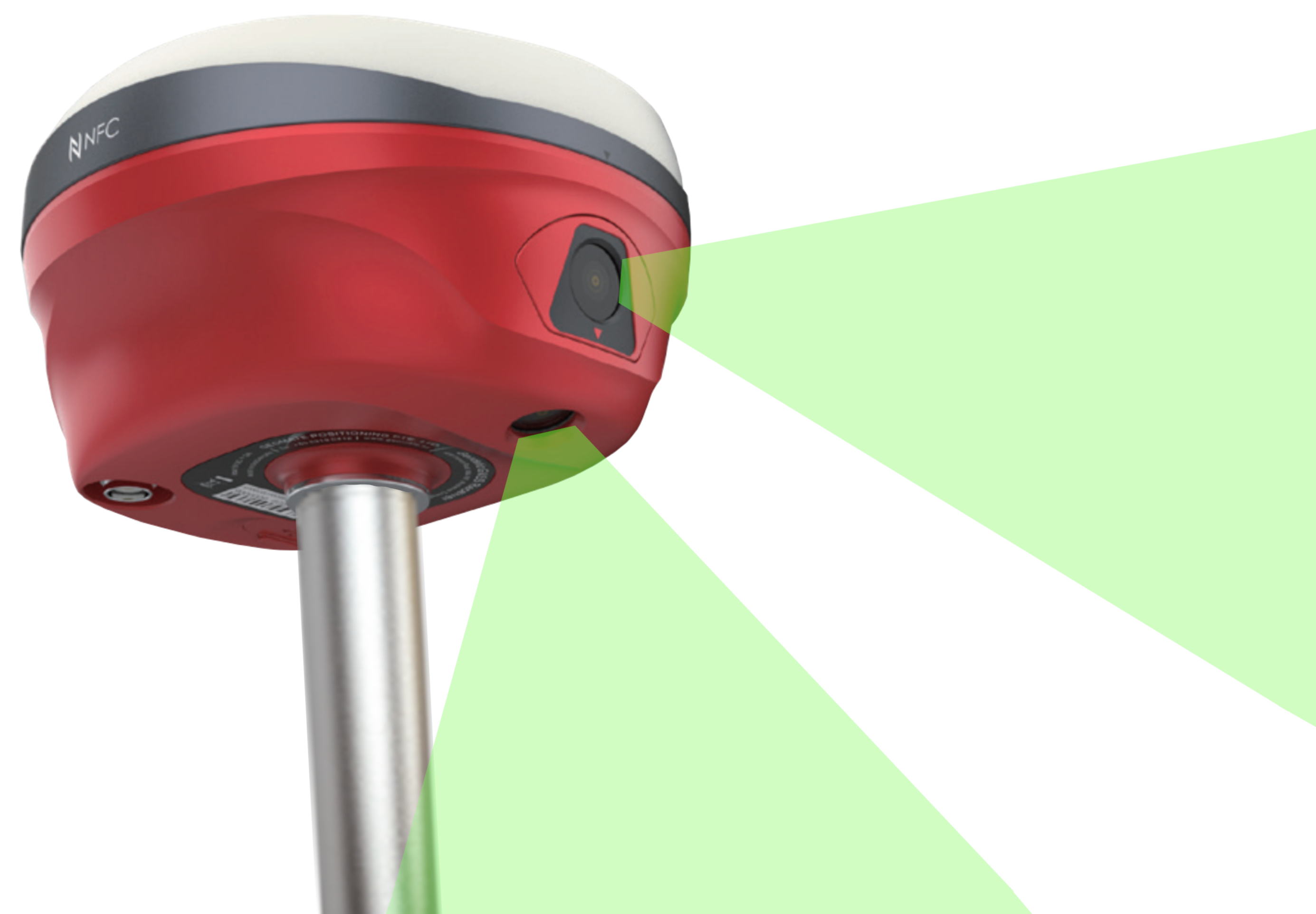

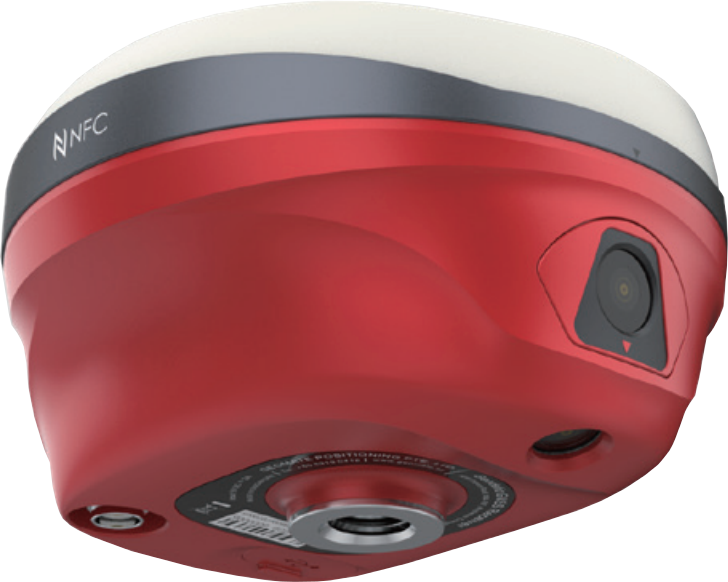

Visual staking: with both forward and down facing cameras, connected by high speed, 300+ MB/sec 5G Wi-Fi; visual staking target displays update 25 times each second. Precise onscreen targets indicate the exact stake target point, updated in real time with no delay.

Visual surveying: georeferenced 3D videos recorded along a project's edge allow precise 3D point / object picking in the field, or back at the office.

The purpose built [ eBase ] is the perfect UHF Base companion for these ground breaking receivers.

Visual Stakeout	Visual Survey

[ click for high resolution Visual Stakeout video ]	[ click for high resolution Visual Survey video ] [ How accurate is Visual Surveying? ]

Real-Time Navigation and Stakeout

10-X faster stakeout driven by visual feedback of the target location. Guided by a clear, directional arrow, real time distance with audio cues and the stakeout point clearly and accurately marked on the ground.

High speed processing enables instant activation. 5.8 GHz Wi-Fi ensures high-frame rate video. A fast 200-Hz, auto-initializing IMU provides reliable target offsets from the receiver's dynamic position.

Automatic image zoom provides tighter target point visualization.

VPT (Virtual Pole Tip) technology overlays a pole tip at the target point, over the rod, clamps and your hand.

Visual Survey is driven by [ LandStar 8 ]

SG6 and SG20AR Comparison

Feature Comparison	SG6	SG20AR

		[ SG20AR Page ]
Price	$ 8,568	$ 6,990
[ LandStar 8 Field Software ]	$ 790	$ 790
Visual stakeout	YES	YES
Visual survey	YES	NO
Internal LTE 4G Modem	NO	NO
Type C-Data / Charge port	YES	YES
7-pin LEMO RS232 / Charge port	NO	NO
High-resolution display screen	NO	NO
Internal UHF Radio Transmit Power	1-watt	1-watt
Data Storage	8 GB	8 GB
Front Camera, global shutter, low light	5 MP	2 MP
Bottom Camera, global shutter, low light	2 MP	2 MP
IMU Tilt Compensation, auto-initialization	YES	YES
IMU Update rate	200 Hz	200 Hz
Field Software	[ LandStar 8 ]	[ LandStar 8 ]
Includes 2-meter adjustable carbon fiber pole	YES	YES
Battery, internal	16.5 hours; visual 9.5 hours	16.5 hours; visual 9.5 hours
Weight	1.65 lbs	0.99 lbs
Environmental rating	IP68	IP68
Warranty	1 year	1 year
Datasheet	[ SG6 DS ]	[ SG20AR DS ]

Long Battery Life

High energy batteries provide long field operation:

Model Standard Visual

SG6 16.5 hours 9.5 hours

Intelligent, fast charging for full battery charge in 3 to 5 hours using standard USB Type-C cables and chargers.

iSTAR 2 FIX
in Harsh Environments

These receivers deliver unmatched performance with 1408-channel, full constellation and full signal tracking.

Time-to-fix rates, fix availability rates exceed all other devices in heavy canopy and harsh environments.

Narrowband multipath mitigation ensures accurate RTK measurements with unmatched accuracy and reliability.

VS rovers work best with iSTAR base engines like the [ eBase ], but also have best in class performance with any generic RTCM3.2/RTCM3.3 base or virtual network correction source.

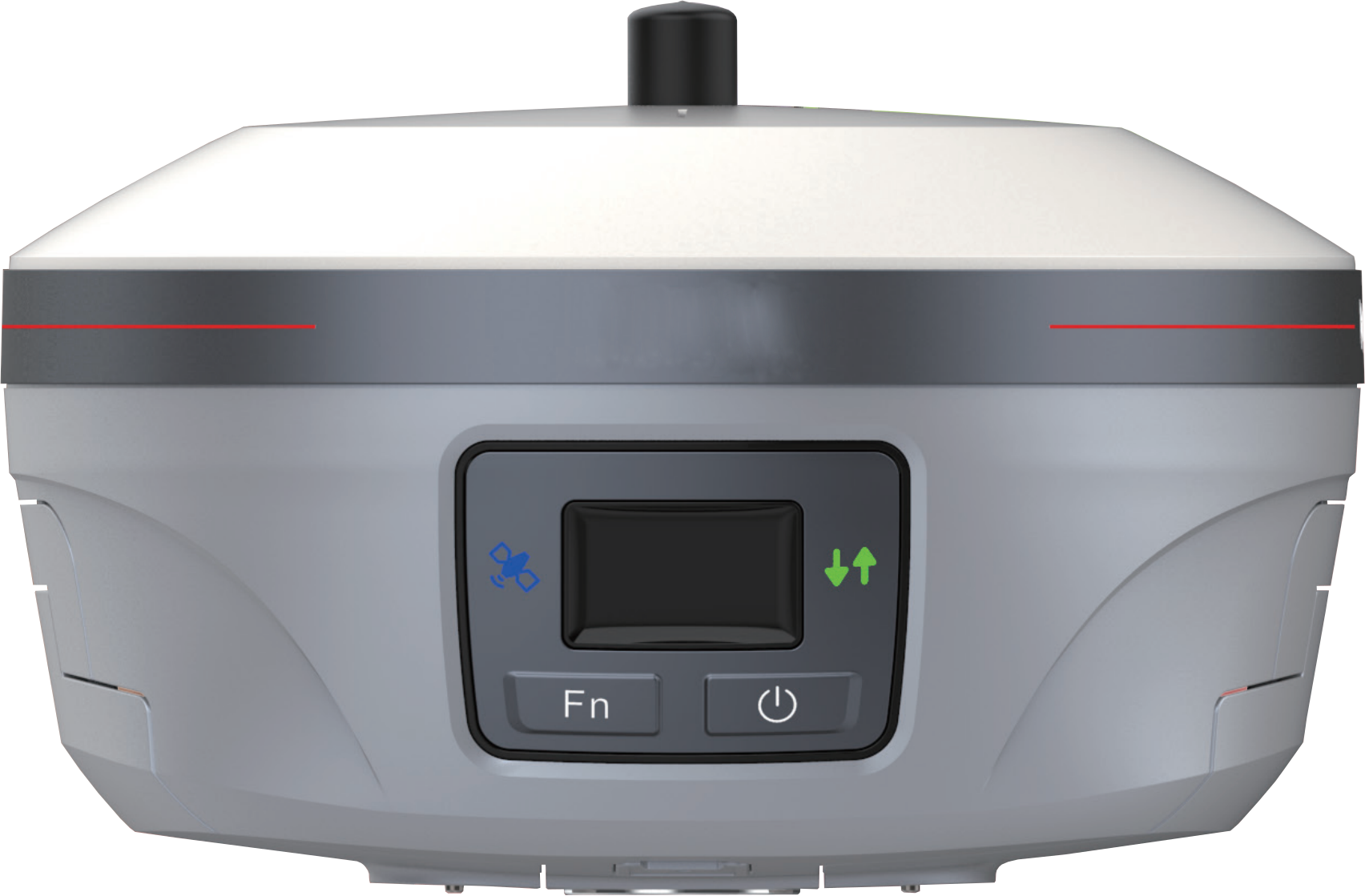

eBase: 5-watt RTK Base Station

Start your Visual Survey projects in seconds

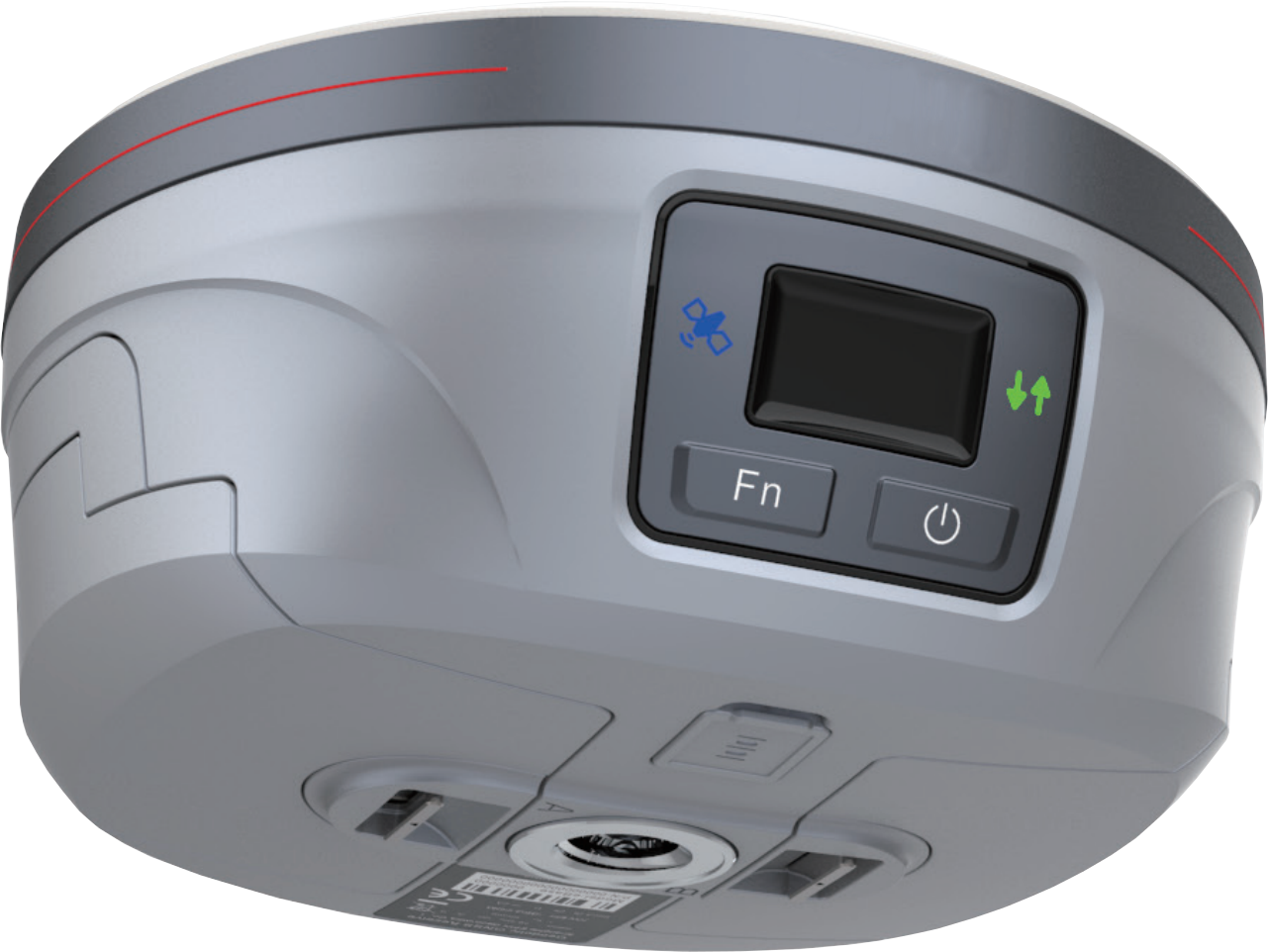

The eBase 5-watt UHF GNSS station is a purpose built, all-in-one base station with 2 large (7,000 mAh, 7.4 V) replaceable internal batteries.

This provides 12-hours of 5-watt base transmissions without external cables and batteries.

Beyond a simple UHF GNSS station, the eBase also includes a 4G LTE modem for transmitting GNSS corrections to a TCP/IP server.

With a 1,608 channel OEM engine matching the SG6, the eBase is the perfect companion for our Visual receivers.

A FCC License is required for operation, see [ FIT ]

Price	[ Pricing ]
Ports	7-pin Lemo: power + RS232 serial
UHF Radio	450 - 470 MHz, 5 watt, Transparent, TT450, 3AS
4G LTE Modem	EG25 LTE Cat-4 FDD in bands 1,2,3,4,5,7,8,12,13,18,19,20,25,26,28
Broadcast Message	RTCM2.x, RTCM3.2, CHC516, RTD, CMR
GNSS Channels	UM980, 1608
Tracking	GPS L1C, A, L2P Y, L2C, L5 GLONASS L1, L2 Galileo E1, E5a, E5b, E6 BeiDou B1I, B2I, B3I, B1C, B2a, B2b QZSS L1, L2, L5, L6 PPP B2b-PPP SBAS L1, L5
Tilt sensor	E-Bubble leveling
Datasheet	[ eBase DS ]
External Power Cable	[ Power Cable ]

INDUSTRIAL GRADE DESIGN

eBase is the GNSS base that you can rely on to survive drops from Tripods and keep working in rain and snow for long workdays.

With IP67 water and dust ingress protection and downward opening battery doors, the eBase is designed to work the real world, on real jobs.

Fully integrated to meet most UHF base needs, eBase eliminates cables, batteries, external radios, external antennas while providing high powered corrections for up to 15 miles.

Visual Surveying Packages

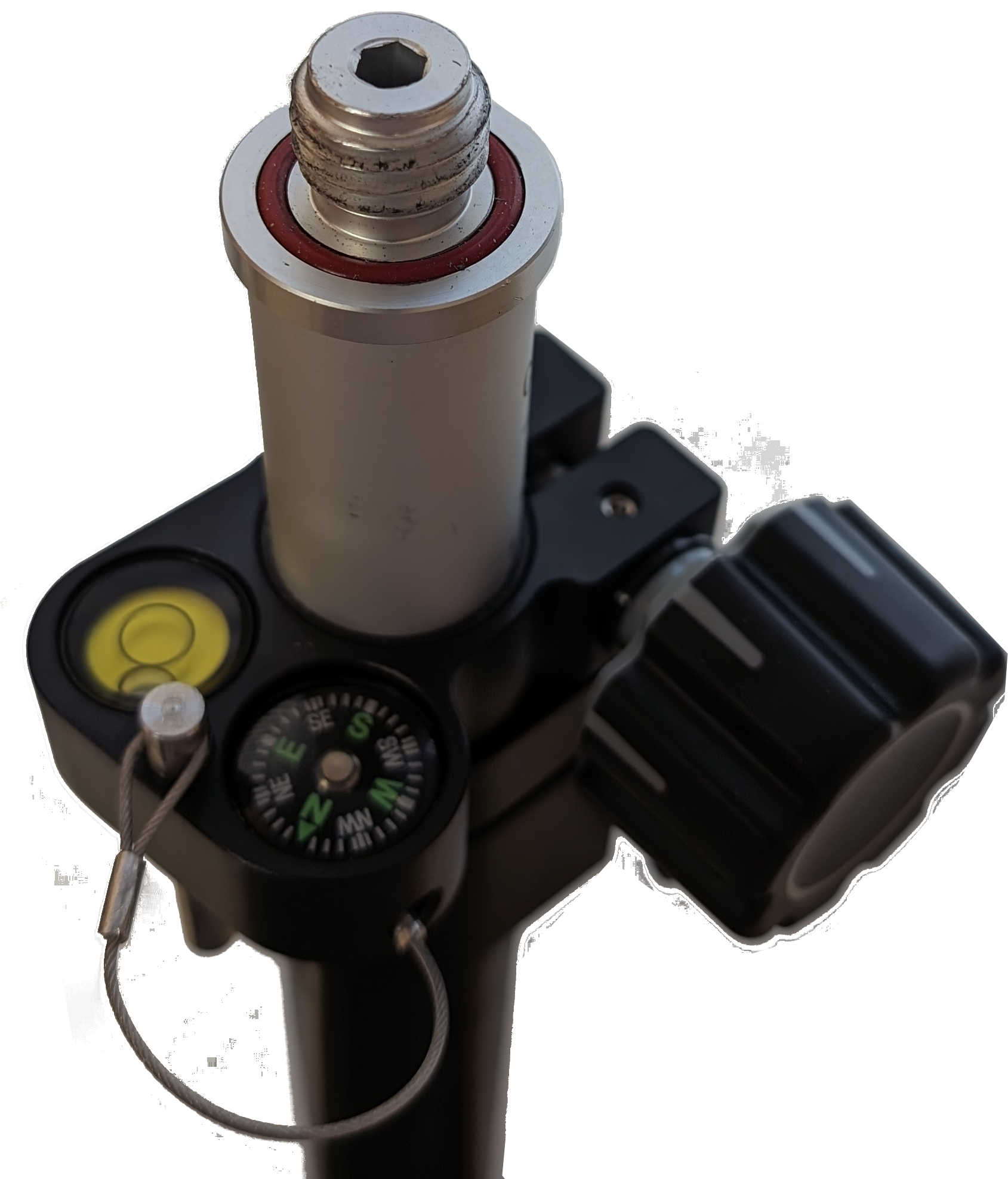

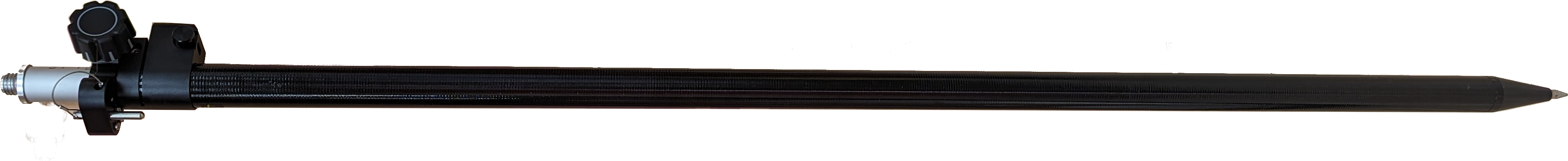

The SG6 and Visual receiver kits include a charger and a 2-meter adjustable carbon-fiber prism pole with a bubble:

The eBase receiver kit includes two high-capacity batteries, a tribrach with a long-bubble adapter and a 30 cm extension pole:

The eBase is purpose built and matches the Rovers, it is simple to setup and makes the best choice for a Base + Rover pair.

If you already own an X91+, iG8, iG8a, iG9 or iG9a you should consider
using them for a base as LandStar 8 support for these legacy receivers is excellent.

[ LandStar 8 ] is required to run the Visual receivers. No other field software supports the High speed camera functions. If you are worried that LandStar 8 won't meet your field requirements or existing workflow, give it a try using the demo. Call us if you would like a printed user manual.

SG6 Pricing

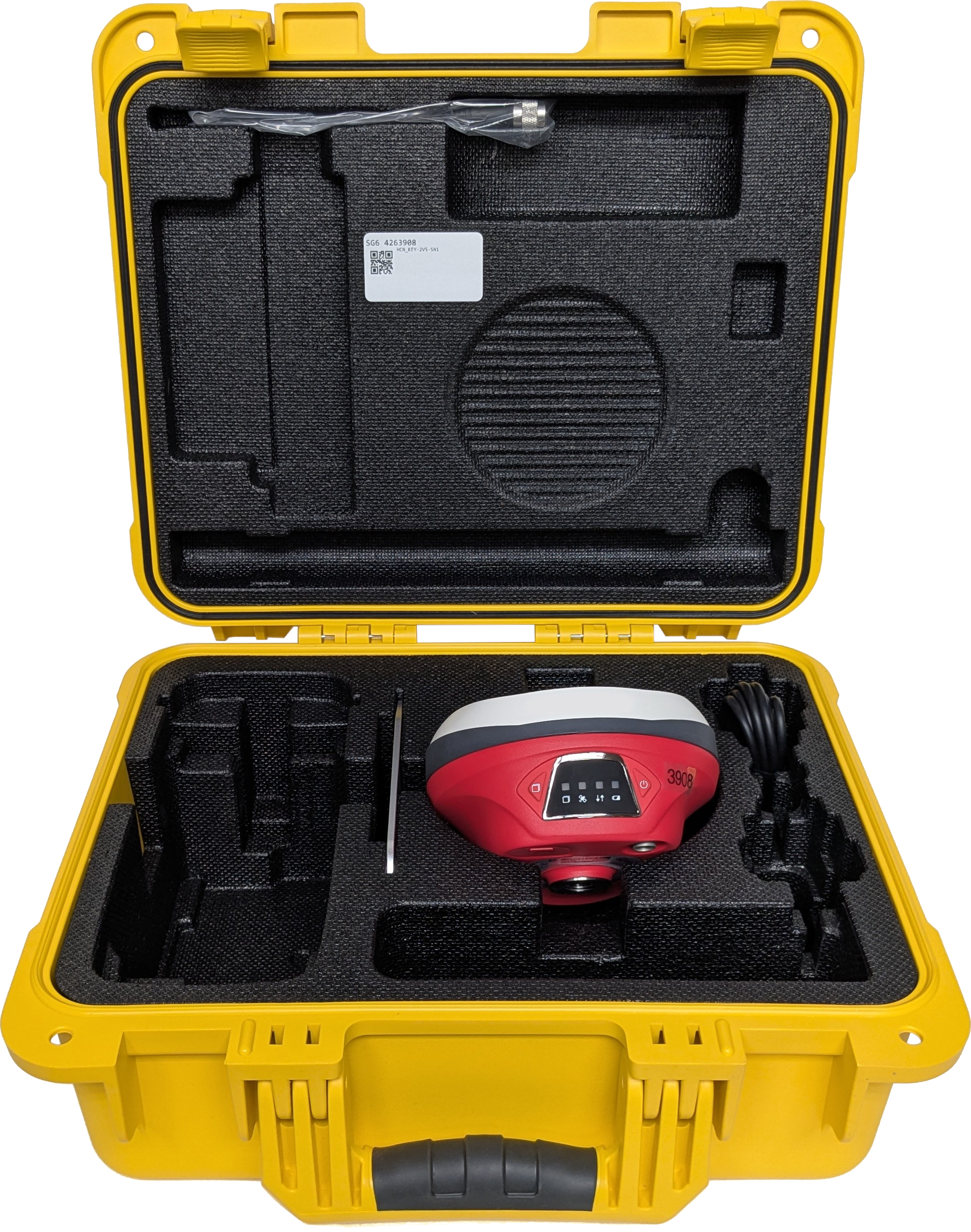

Every SG6 Kit includes

SG6 Rover Kit 8001010358 MSRP $9,990
A11561980007070507 SG6 GNSS Receiver w/ Visual Survey & Stakeout
4102020029 Range pole
4104060069 Power Adapter (5V2.4A)
4106040057 Transport Hard Case
0105030069 Type-C USB Cable
4101030012 UHF Whip Antenna(410-470MHz)
4102070001 Auxiliary H.I. Tool (Silver)

NOTE: All receivers are fully activated and include UHF Radio, IMU tilt compensation and a carbon-fiber 2 meter pin-lock adjustable pole. UHF and IMU are not options, they are included with every receiver.

These bundle prices may be modified at any time, please call for a written estimate to lock in prices.

Eligible for [ iGage 10-24 financing ]

Note: Prices are subject to change, prices are dependent on tariffs, call us and get a written estimate to lock in pricing for 30-days.
