SG20AR Micro GNSS RTK receiver

Jump to: [ Pricing ]

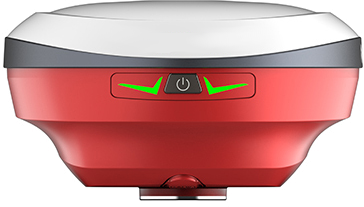

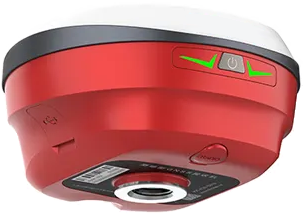

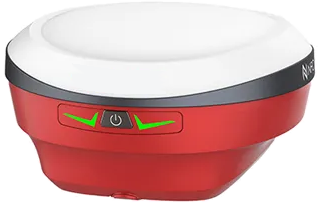

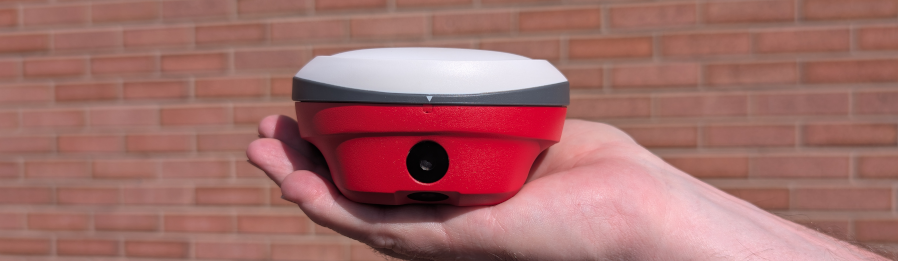

The SG20AR receiver matches the legendary under canopy performance of all our latest receivers; but, in an incredibly small size (4.2 inches wide x 2.1 inches high, 1 lb) with dual Visual Stakeout cameras.

Full GNSS tracking: 1608-channels taking advantage of GPS, GLONASS, Galileo and BeiDou (with BeiDouIII) providing robust data quality and unequaled under canopy performance and short time-to-fix in challenging environments:

GPS L1C, L1A, L2P(Y), L2C, L5; GLONASS G1,G2,G3; Galileo E1, E5a, E5b, E6, E6 HAS;
BeiDou B1I, B2I, B3I, B1C, B2a, B2b; QZSS L1C/A, L1C, L2C, L5; PPP B2b-PPP; SBAS L1C/A

IMU Tilt Compensation: With a 200-Hz high-speed IMU coupled to GNSS with fast 3-second initialization delivering 3cm accuracy up to 60-degree pole tilt.

Radio: 1-watt Internal UHF Radio.

External Power and Charging: The SG20AR has internal batteries which are charged by a Type-C cable in 4.5 hours.

SG20AR Pricing

Every SG20AR Rover includes

SA11364980007070507 SG20AR GNSS Receiver （Rx/Tx)
4102 020 029 Range Pole
4104 060 069 Power Adapter (5V2.4A)

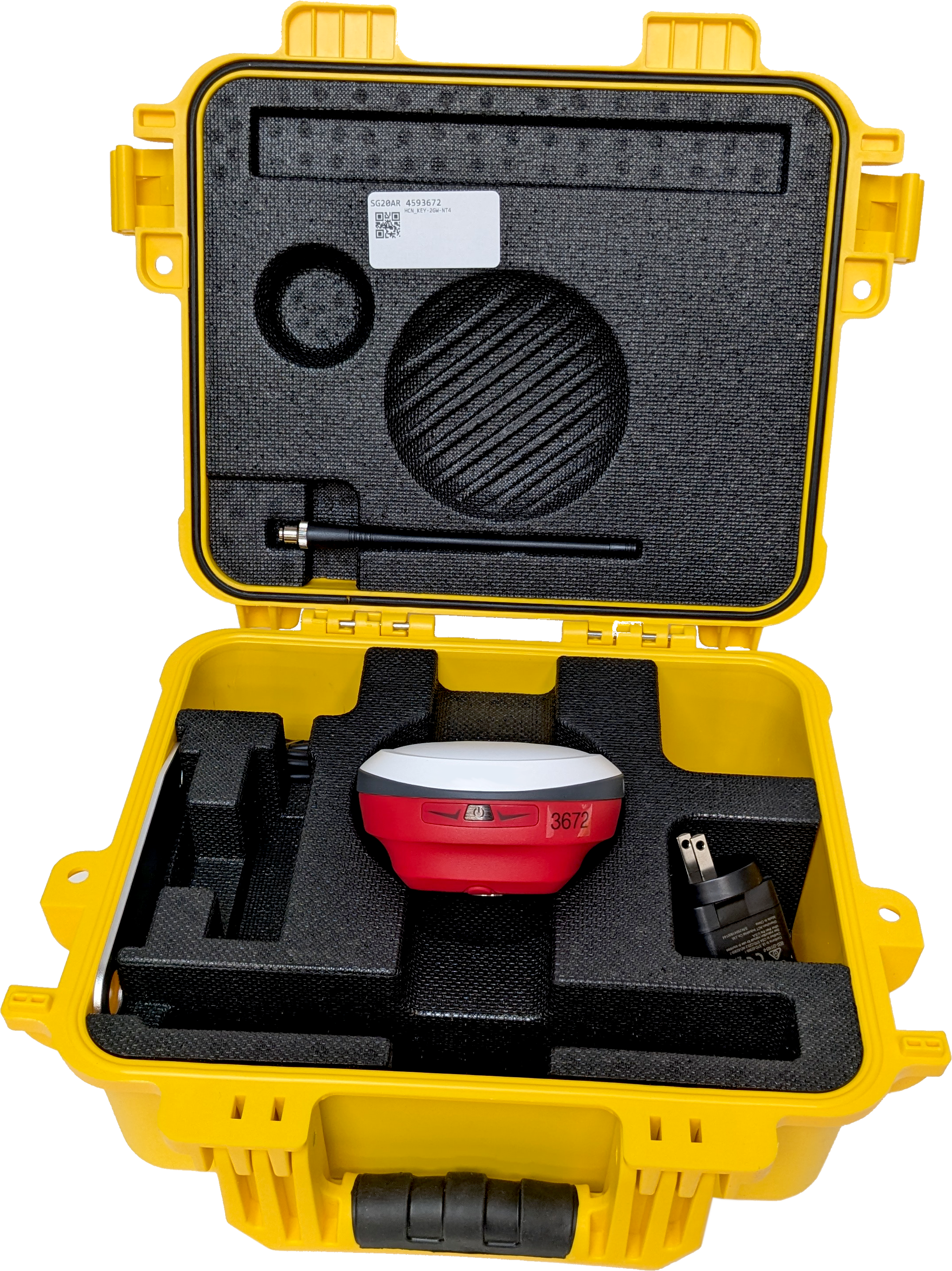

0103 051 216 GNSS Receiver Case labeled iGage
0105030069 Type-C USB Cable

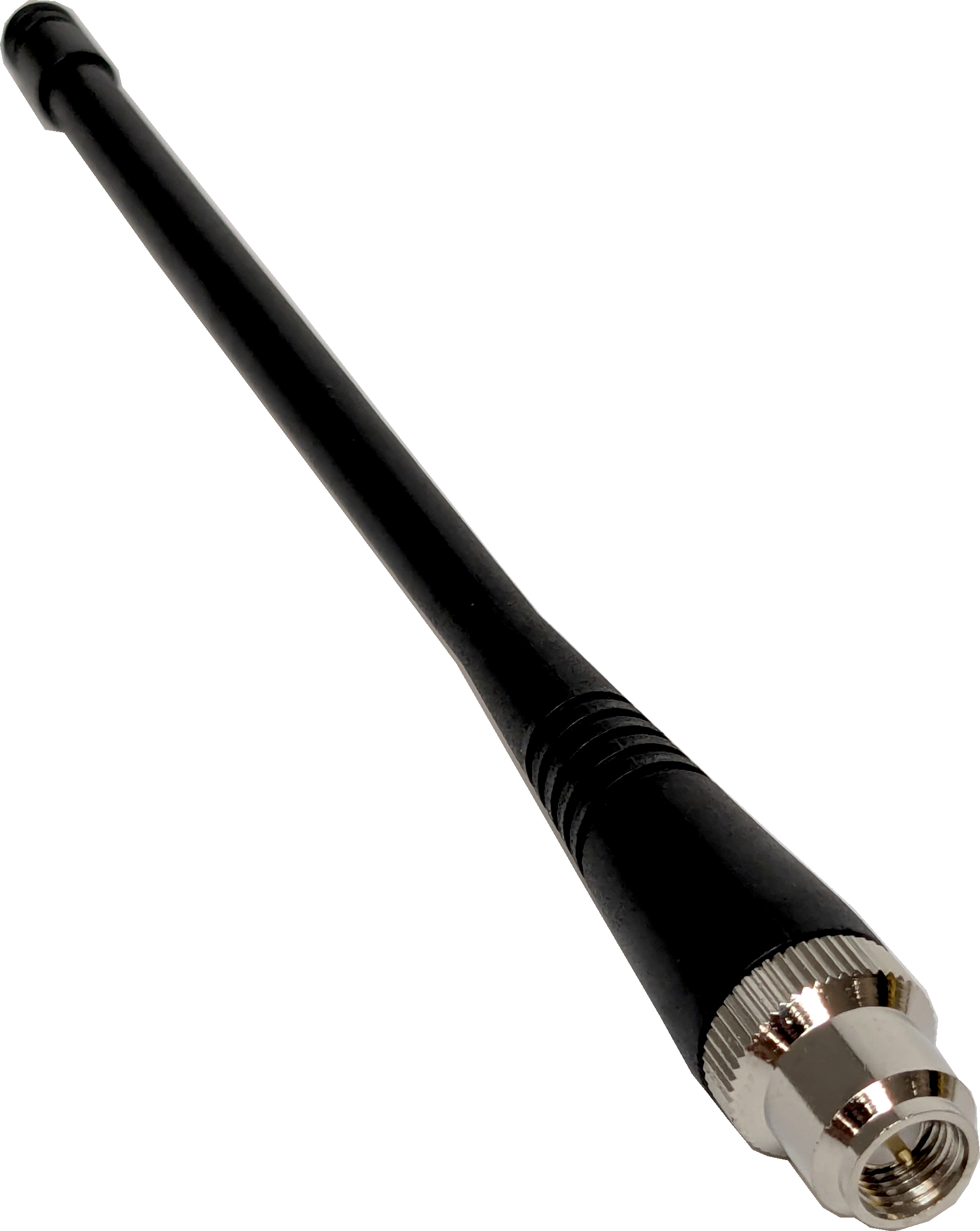

4101 030 011 SMA Whip Antenna(410-470MHz）
4102070001 Auxiliary H.I. Tool (Silver)

NOTE: All receivers are fully activated and include UHF Radio, IMU tilt compensation and a carbon-fiber 2 meter pin-lock adjustable pole. UHF and IMU are not options, they are included with every receiver.

These bundle prices may be modified at any time, please call for a written estimate to lock in prices.

Eligible for [ iGage 10-24 financing ]

Note: Prices are subject to change, prices are dependent on tariffs, call us and get a written estimate to lock in pricing for 30-days.
