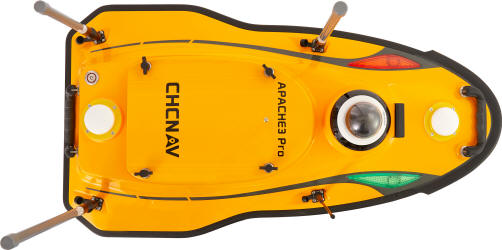

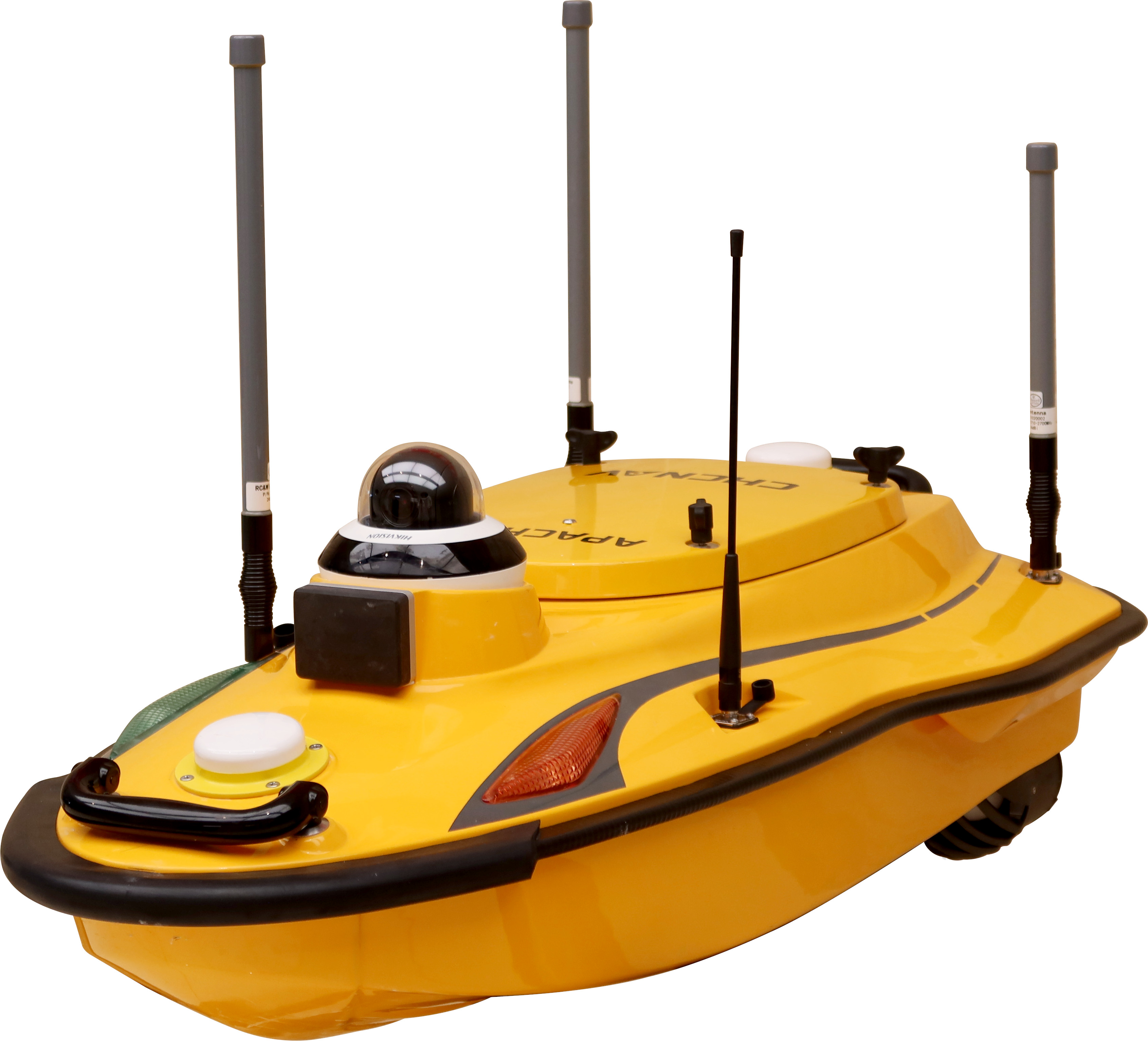

The Apache 3 Pro is a compact, high performance marine
Uncrewed Survey Vessel (USC)
with single beam echosounder, precision GNSS and high-speed IMU technology for a wide
range of hydrographic survey applications.
The built-in millimeter-wave, 110° ahead angle obstacle
avoidance system autonomously detects and charts a safe course around
obstacles, minimizing the risk of collision damage during
operation.
355° degree high speed camera enables remote override and
supervision.
Dependable real-time data for security and productivity
A combination Wi-Fi and optional cellular network with automatic
switching capabilities ensures reliable communications.
Cloud-based remote monitoring is seamlessly integrated
to provide real-time information on the status of the vessel enhancing
control and security.
Auto-return to home protects against low battery and signal
loss.
Shielded motors allow diverse water operation
Recessed 800 watt motors with an internal rotor results in a
shallow draft, lower water resistance and extended motor life.
Speeds greater than 13 mph with quick acceleration.
There are no external cables on the boat for motors, GNSS,
cameras or radar greatly reducing the risk of damage.
High speed, high accuracy IMUs enable operation under
bridges
A 200 Hz internal measurement unit (IMU) ensures consistent
position accuracy when navigating under bridges. Tight
integration of GNSS and IMU sensors also compensates for the
effects of hull sway and eliminates data outliers.
Lightweight design
Constructed from macro-molecular
polyester carbon fiber and Kevlar glass fiber the Apache 3 is a
remarkably light 22 lb. triple hull with the possibility of 65
lb. payloads.
This allows a single operator to deploy in a variety of
locations.
Single-beam echo sounder for bathymetric survey
The APACHE 3 Pro comes with a fully integrated with a D270
single-beam echo sounder and flush mounted transducer.
With an integrated built-in water temperature sensor,
real-time sound velocity corrections result in superior depth
measurement accuracy.

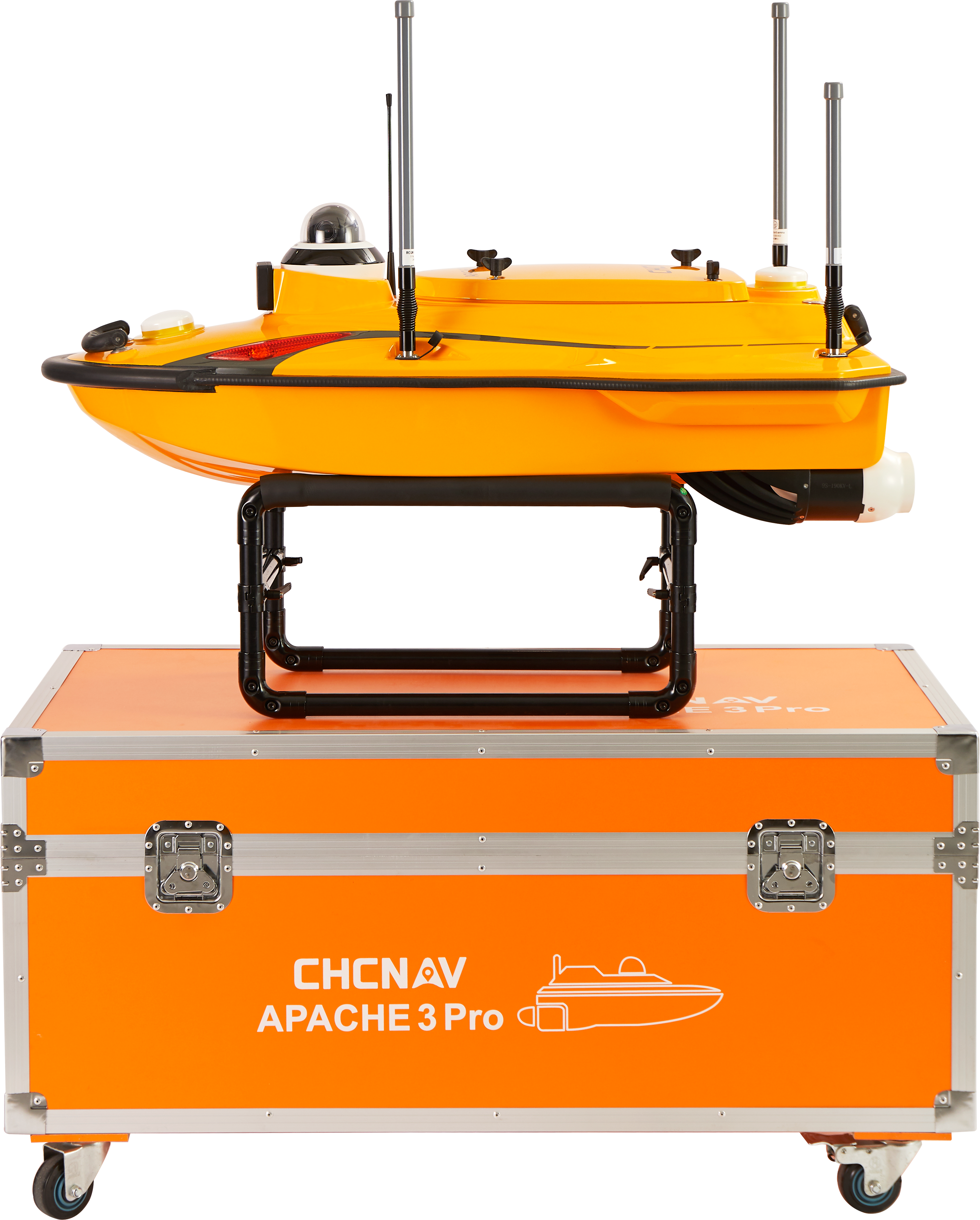

3.44' long x 0.55' wide x 1.28 high; 61 lbs. with batteries. Can
be transported in a small vehicle and deployed by a single operator.
3-hour operation at 5 MPH on 2 batteries, quick charging with 2
extra batteries allows nearly continuous operation if shore power is
available for charging.

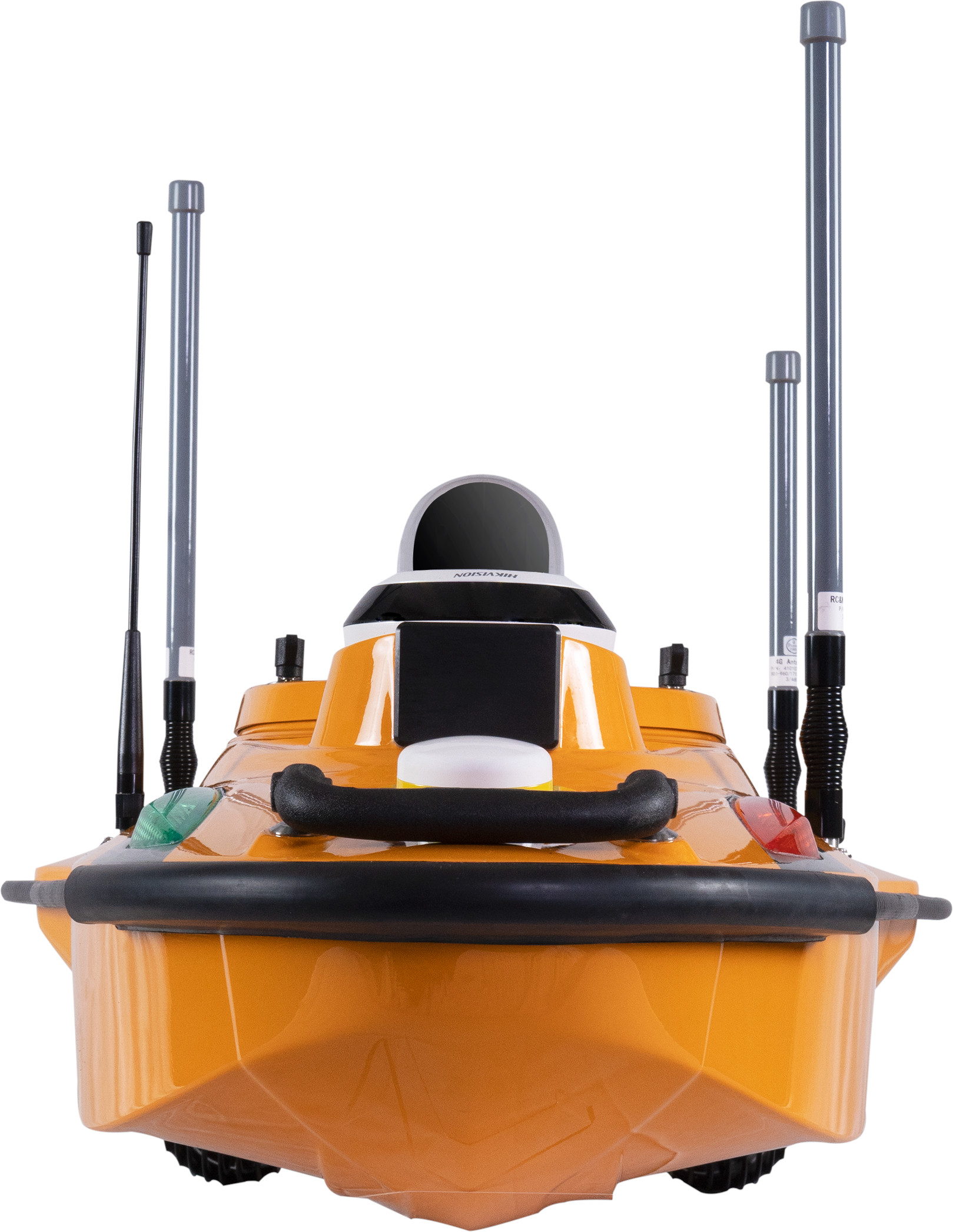

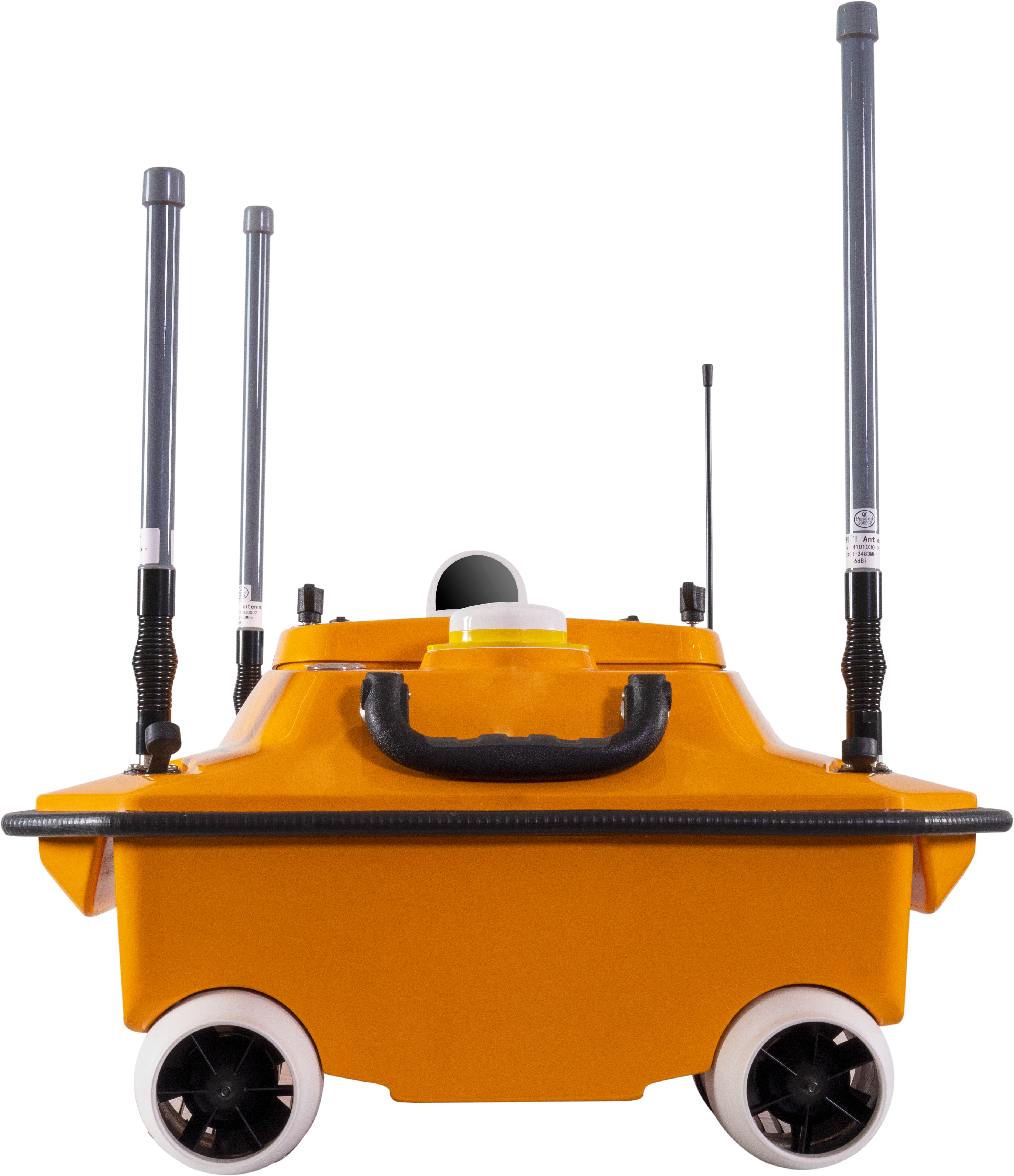

Unlike other USV's, the Apache 3 Pro has no external wires,
attachment brackets, external GNSS receivers and other sensors
mounted on high poles. All connections are hull-internal. The camera
has a 355° unobstructed view other than the radio antennas, there
are no receiver masts in any direction.

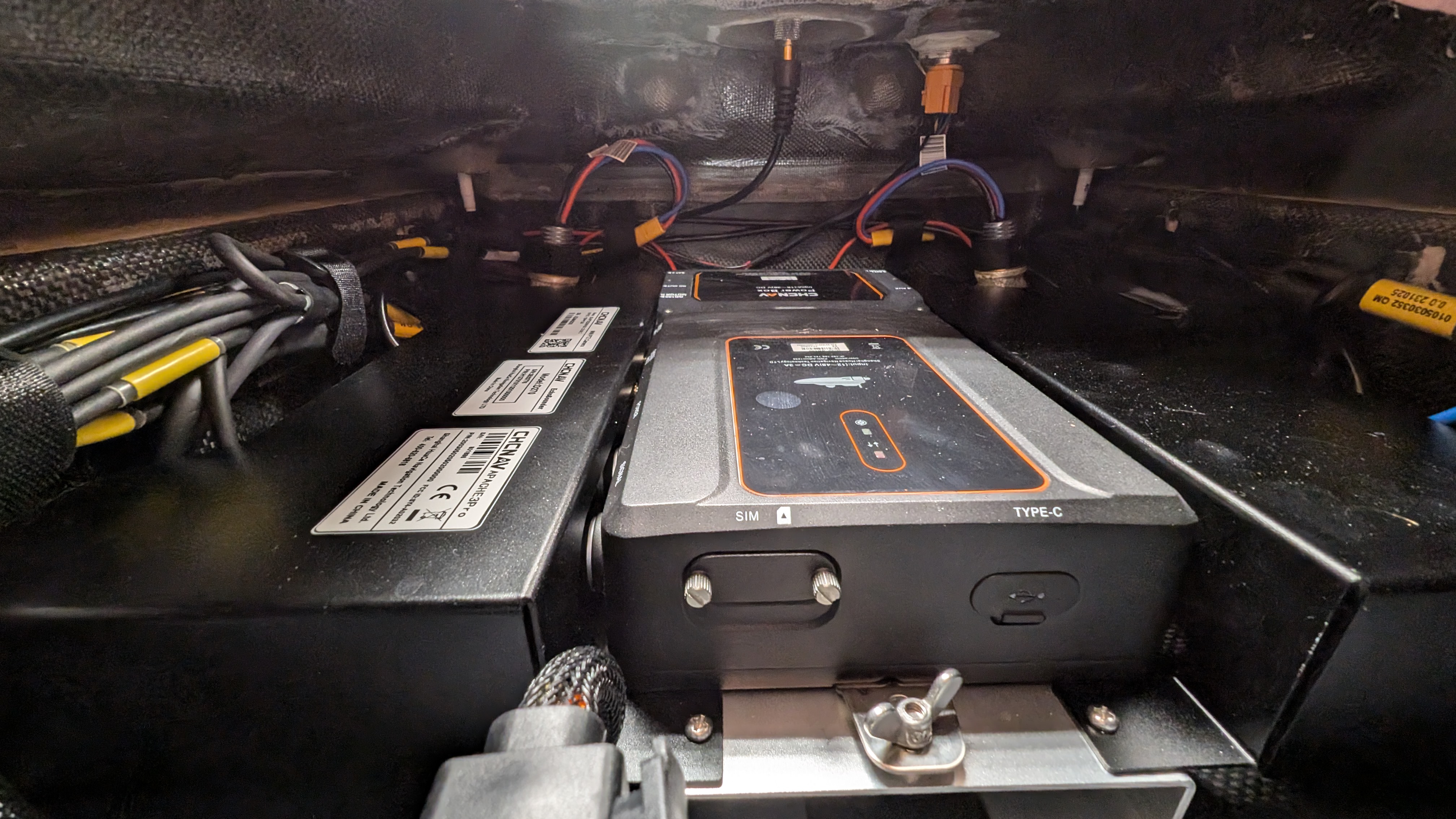

The Apache 3 Pro's internal wiring is fully dressed and
protected. There are no unsheathed wires to snag.
A suitable RTK base or network correction source is
required. An [ i83 ]
or [ iBase
] with a copy of [
LandStar8 ] is a perfect companion device.
The Apache 3 Pro is not a mad-science project with cables going
from transducers mounted on afterthought brackets attached to the
hull. This is a well-engineered, 4th generation product where all
the transducers, motor wiring, cameras, radar, antennas are designed
into the hull. The internal wiring is dressed and protected for
continuous real-world use.
Echo Sounder
The D270 sounder is temperature compensated to improve accuracy.
Sounding range: 0.5 to 650 feet (ideal conditions)

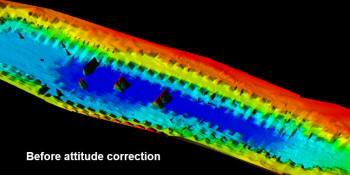

The internal high-speed, high-accuracy IMU is used to correct for
vessel attitude (pitch and roll):
The IMU also provides loss of GNSS lock real-time navigation when
running under bridges.
Combined with dual-GNSS receivers for heading there is no need
for an electronic compass.
Dual, full constellation RTK receivers with IMU enhancement
provide 0.3" position and 0.2° heading accuracy.

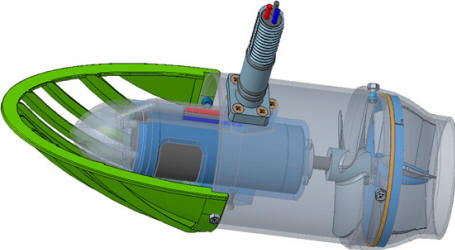

Motor

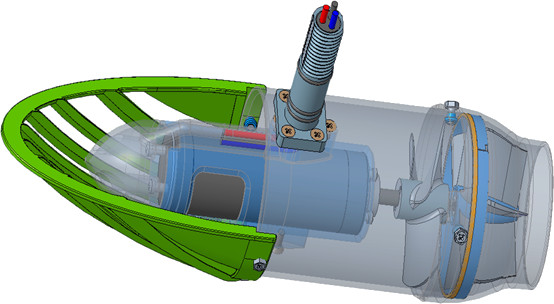

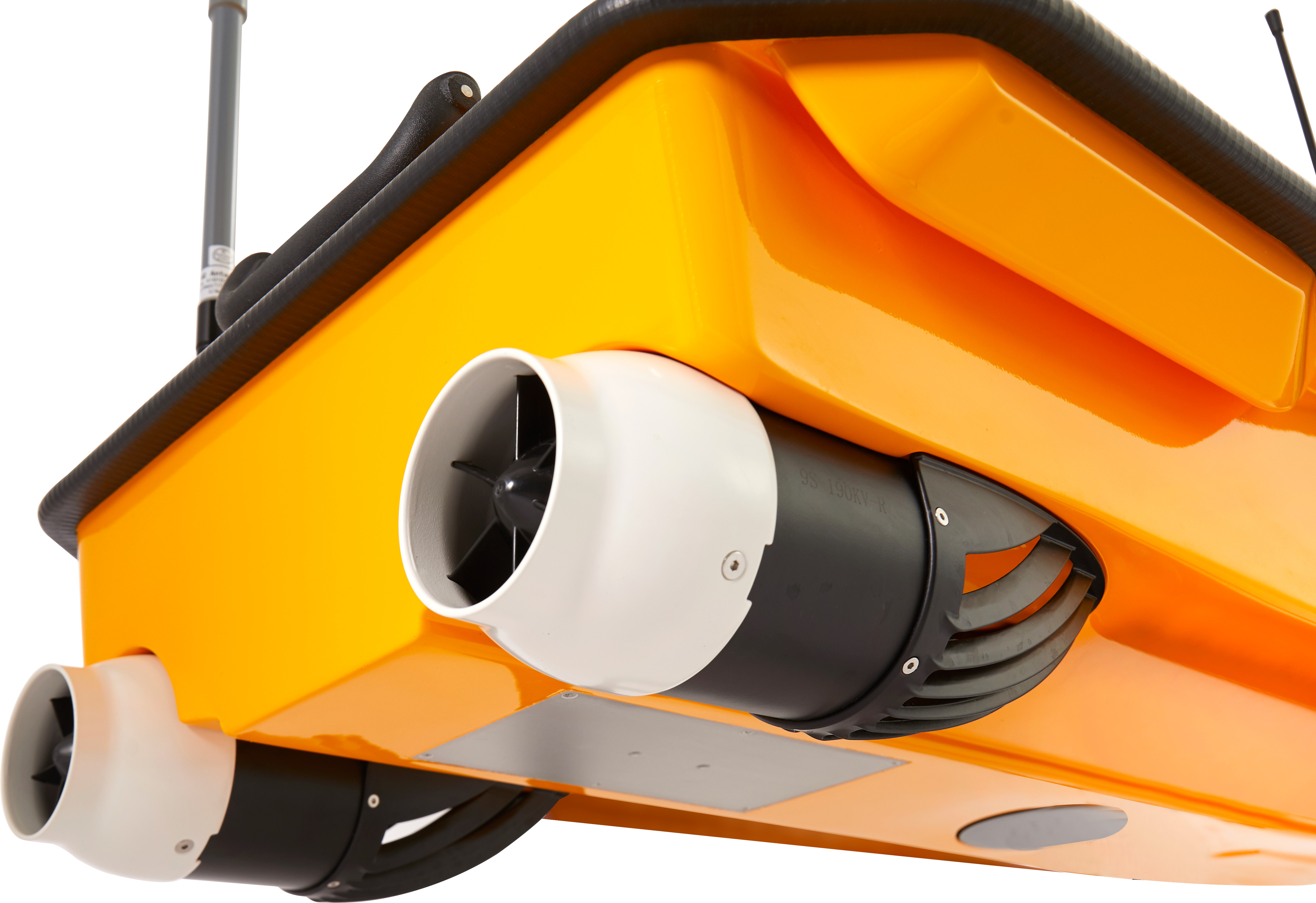

The recessed motor helps operation in aquatic vegetation while
reducing draft. High-speed, high-torque 7,200 rpm brushless DC
motors reach 6 meter/second (12 MPH) with quick acceleration.
Over-speed mitigation extends motor life when operating in weeds and
fouling plants.
Motors have internal wiring so there are no cables on the
exterior of the hull.

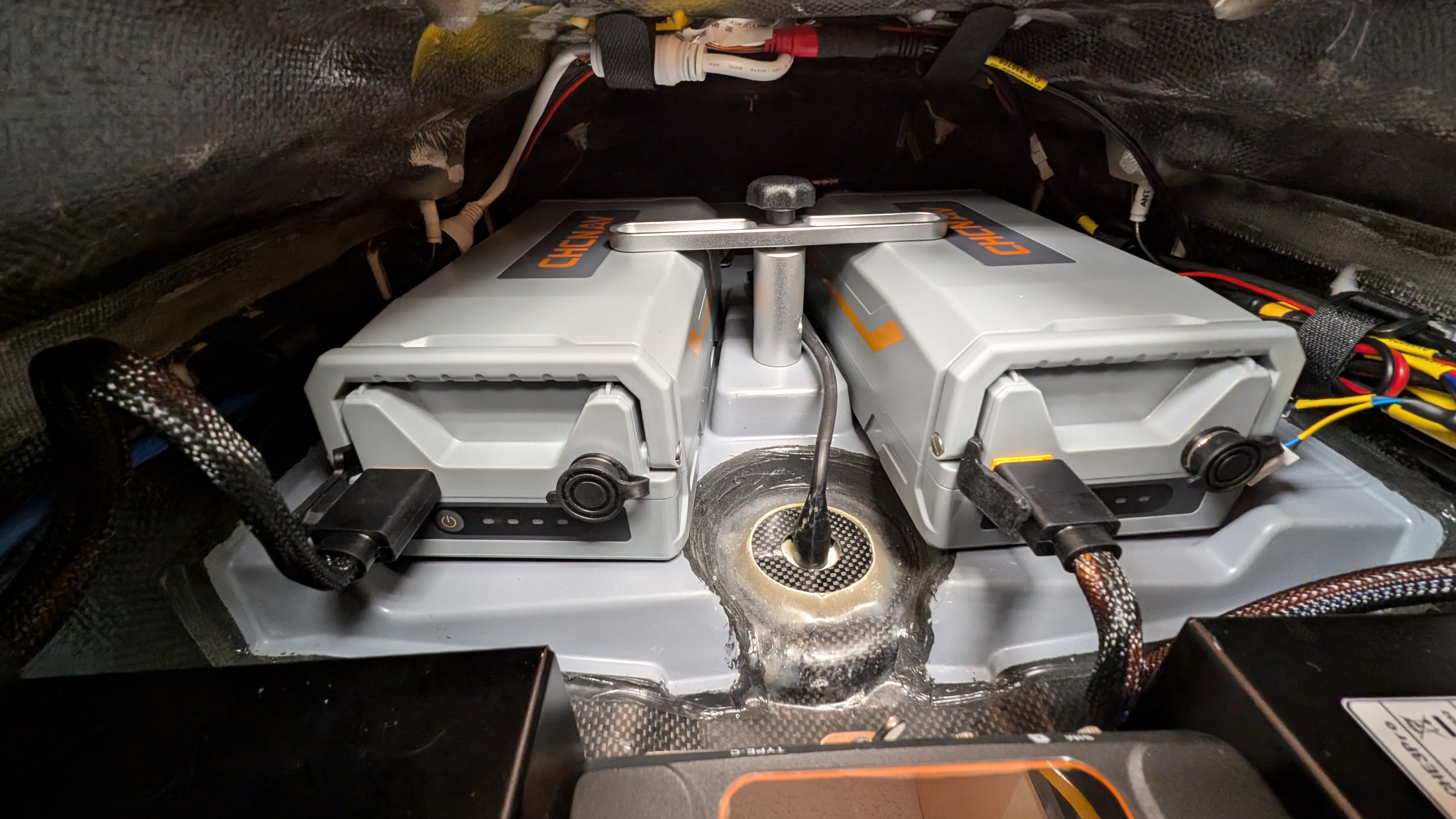

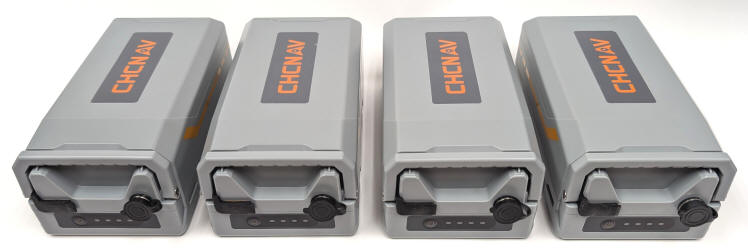

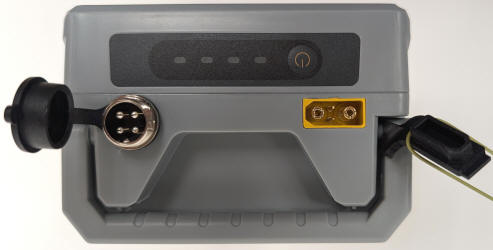

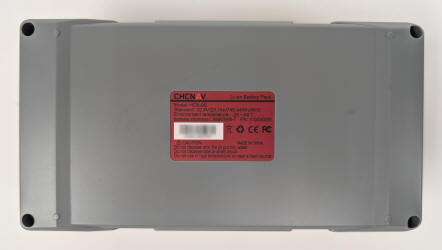

Balanced power supply system
Dual packs allow hot swapping. Discharges batteries equally to
lower cell temperature and stress.

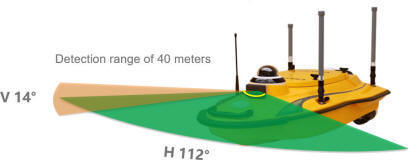

Obstacle avoidance
Millimeter wave radar allows automatic obstacle avoidance with a 120-foot range.
A bottom tracking algorithm issues a shoal alert when the Apache
encounters very shallow water.
Call +1-801-412-0011 for a quotation and delivery options.
Part Number
Description
Price
8004 010 031

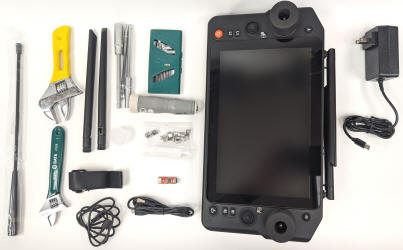

Complete APACHE3 Pro USV kit with Android controller and all software
Includes 1-day training at our Bozeman Montana Facility. Does not include shipping.
$ 29,995
200305020502 The Hull of

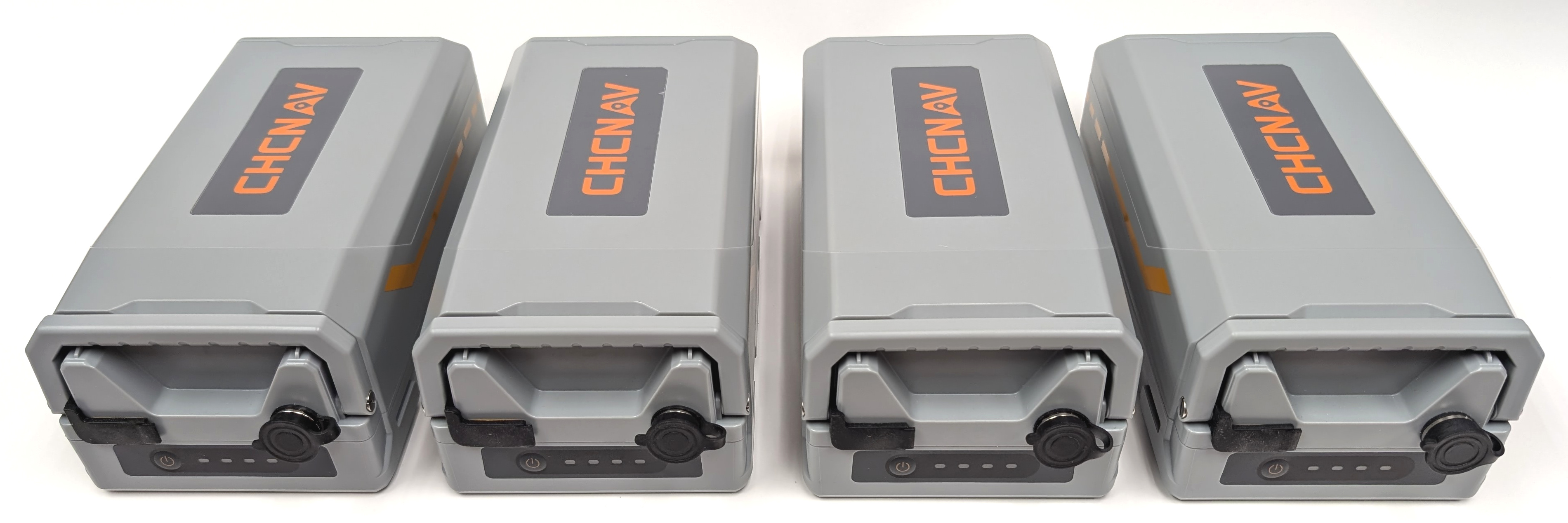

APACHE3 Pro USV (Including D270 & Camera) 4104040009 qty 4 Li-Ion Battery (23,100mAh 32.4v)

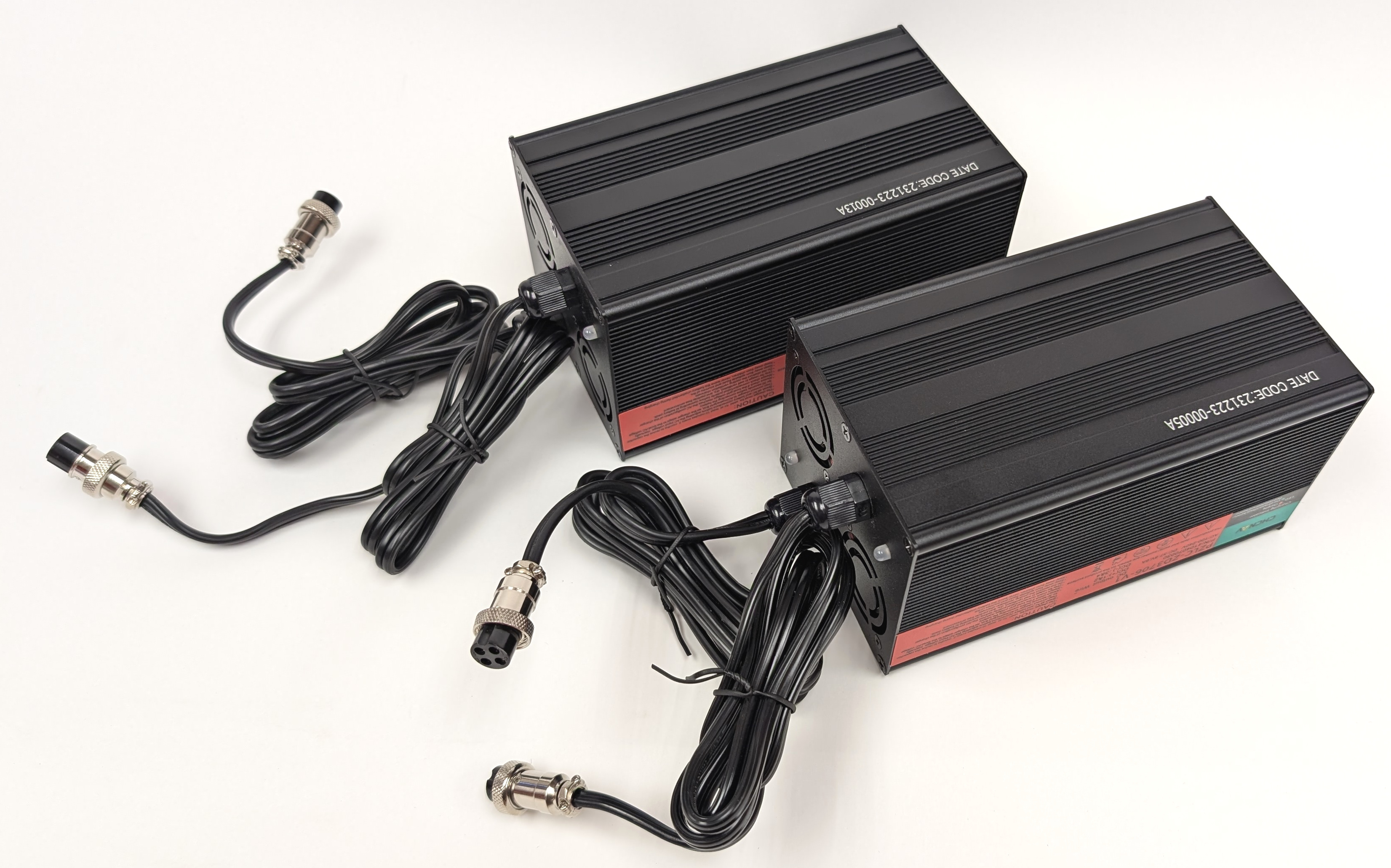

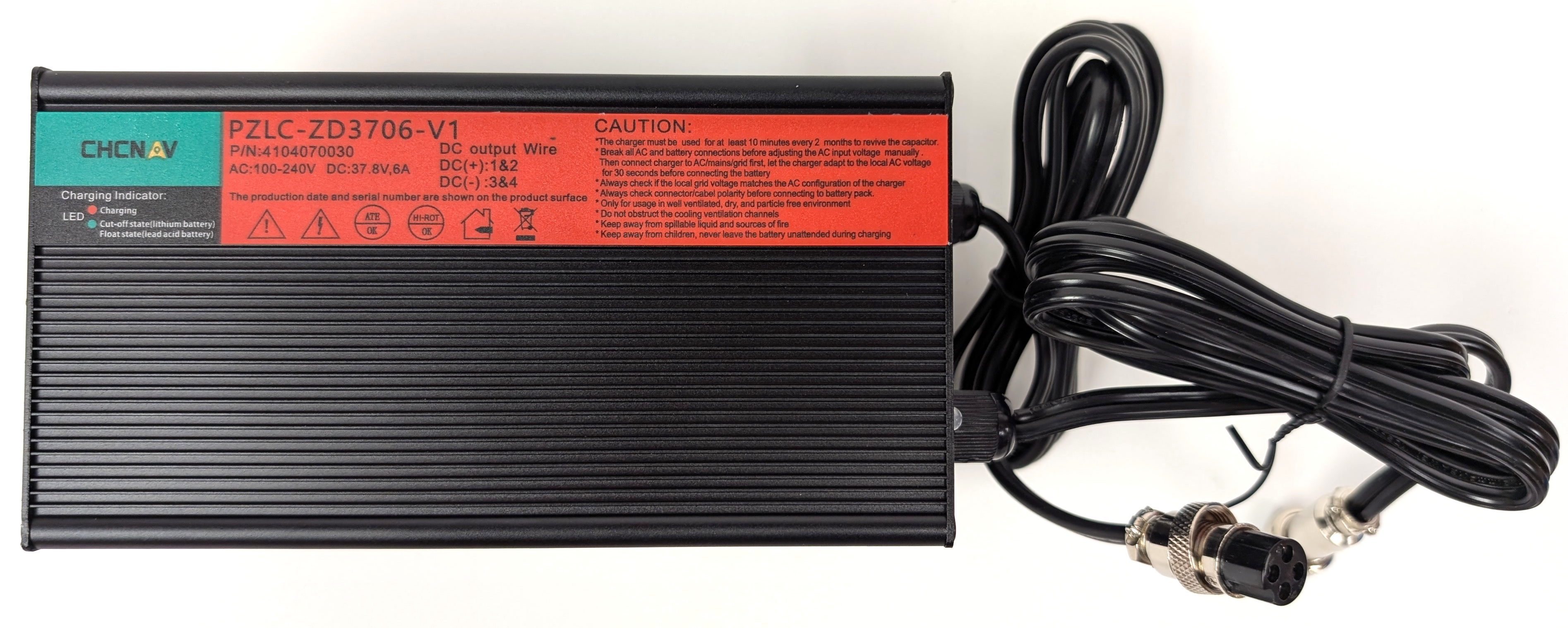

4104070030 qty 2 Li-Ion Battery Charger for 23,100mAh

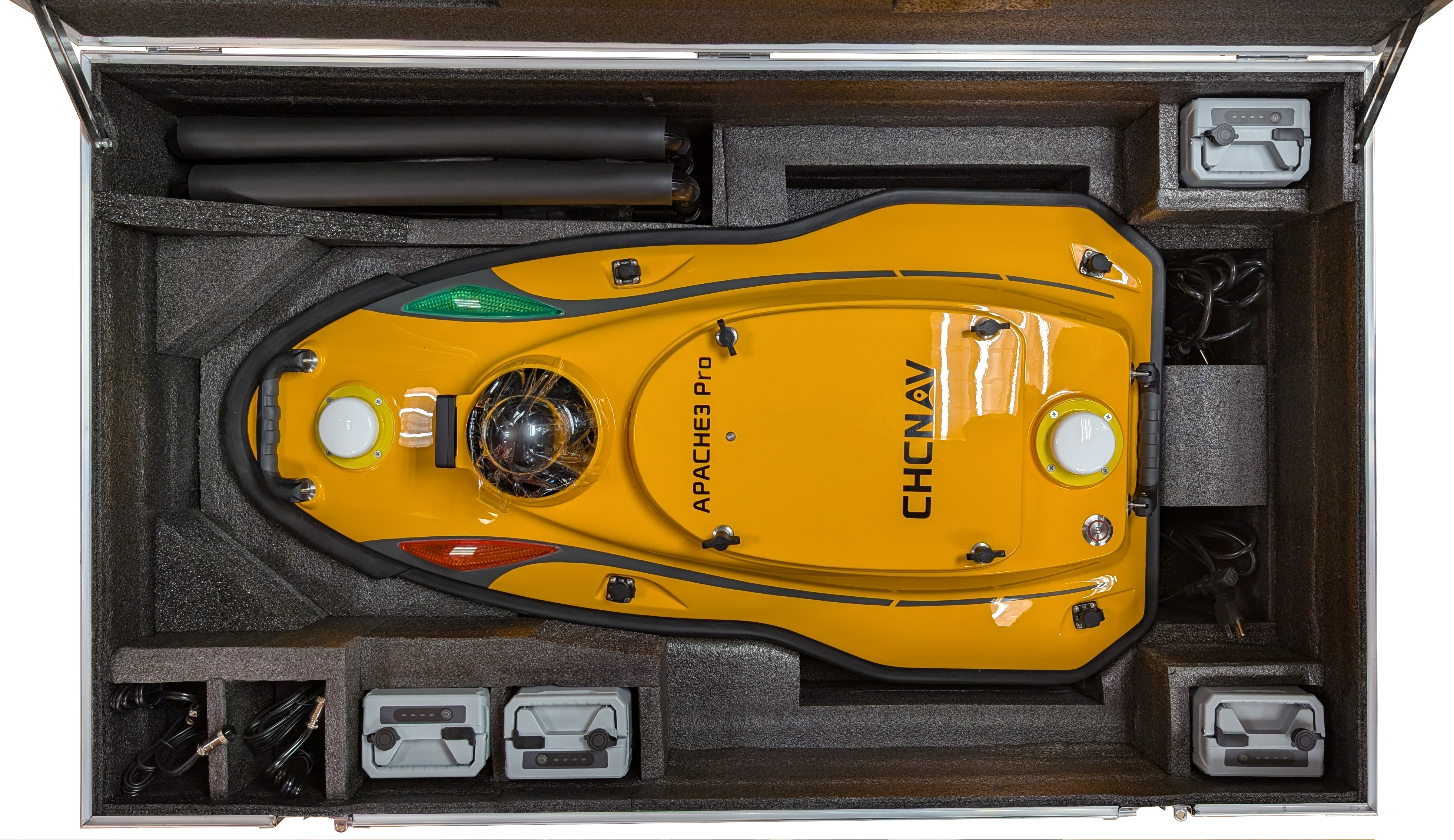

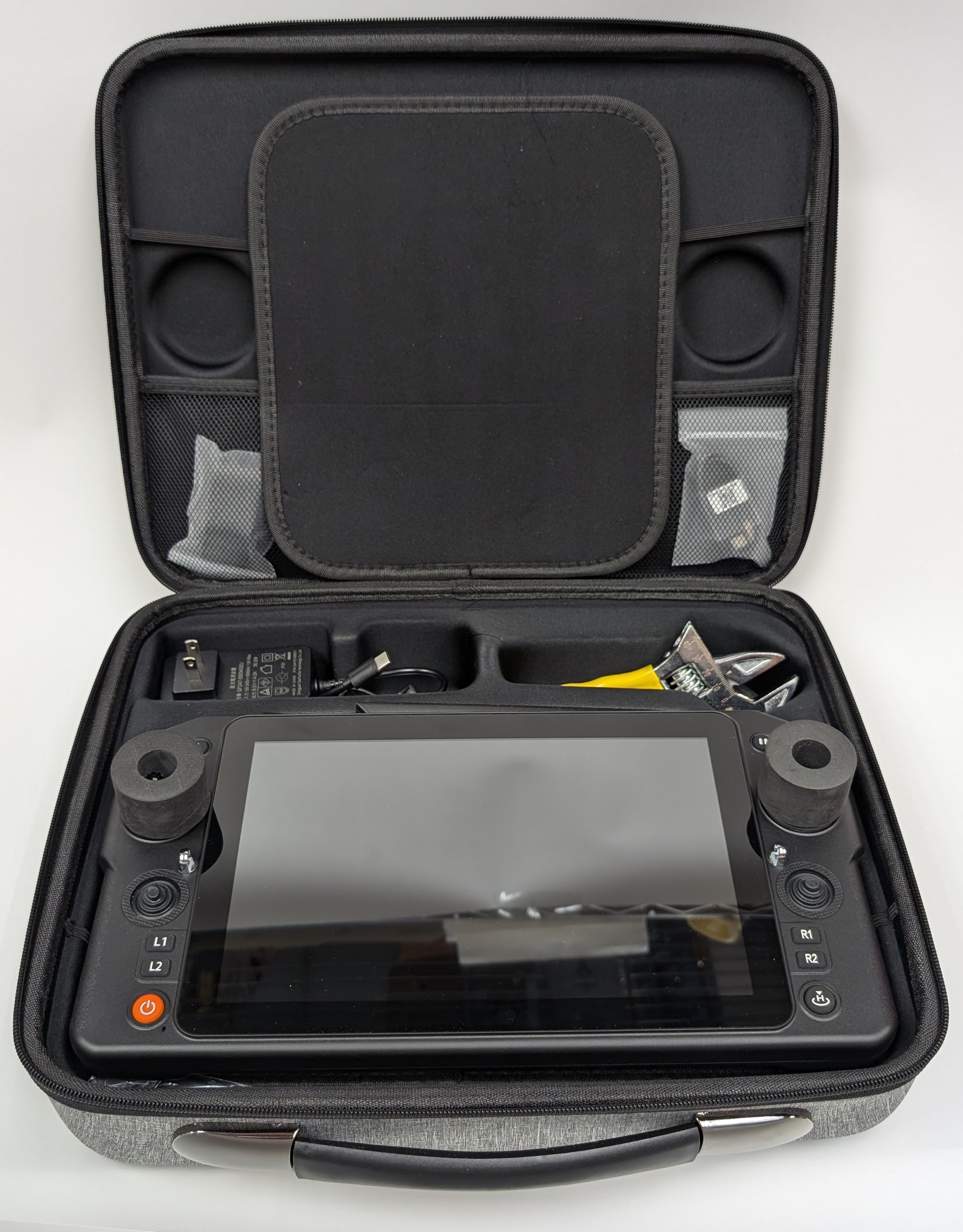

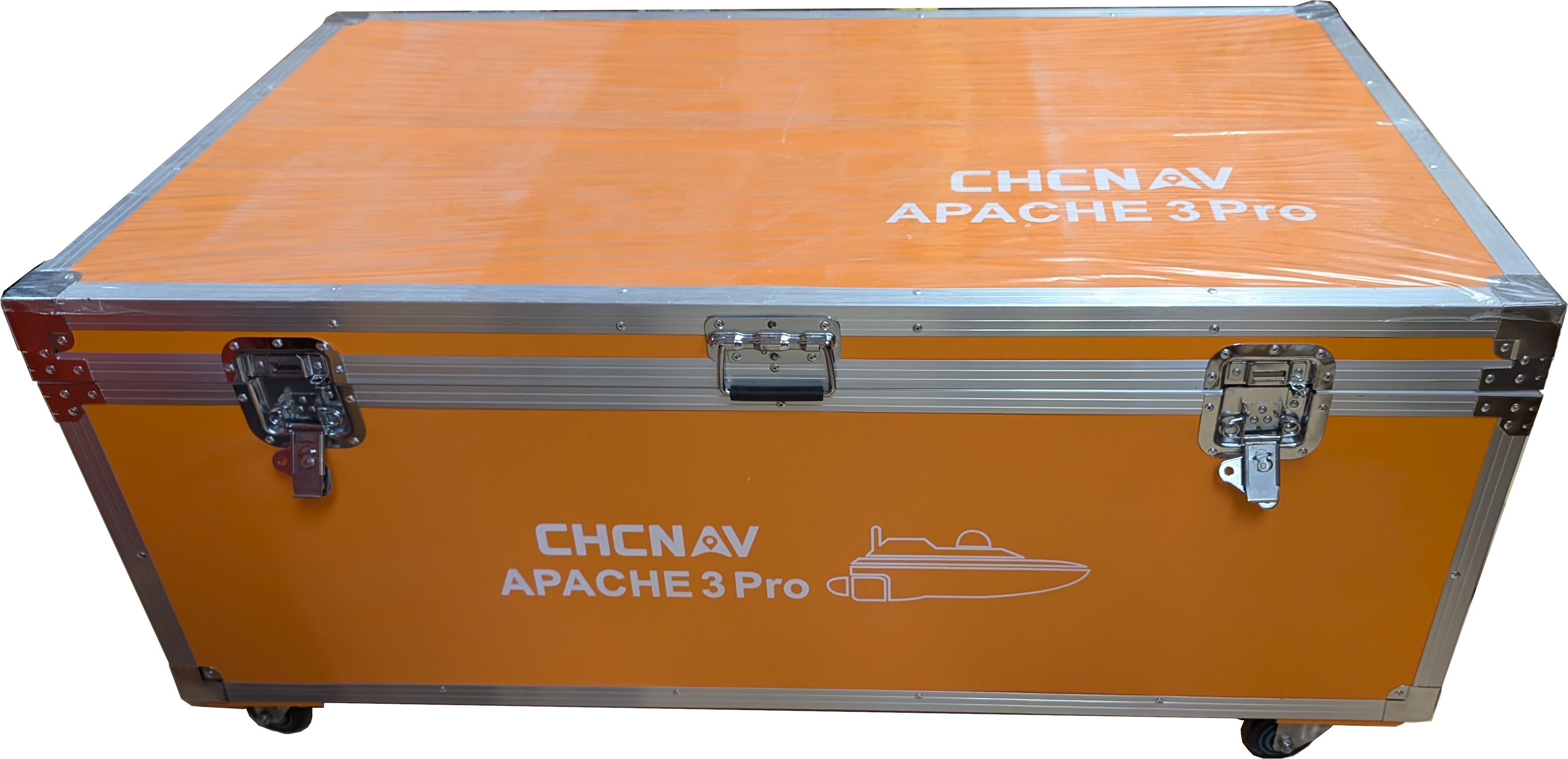

4106040380 APACHE3 Pro Hard Transport Case with casters 4105060008 Remote Controller (H30)

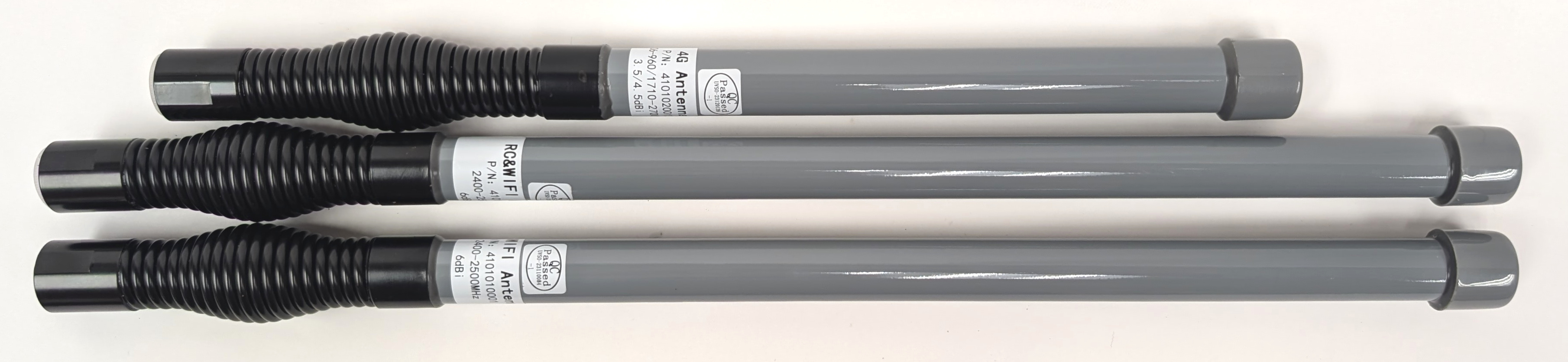

4106040343 Remote Controller Padded Case 4101030002 qty 2 RC&WIFI Antenna
4101020002 4G Antenna 2004020016 High Frequency UHF Radio Antenna
4105170019 ESC Debugger 0201050863 Silicone Grease
201050863 USV Spare Screws 2004050073 Power Adapter for Remote Controller

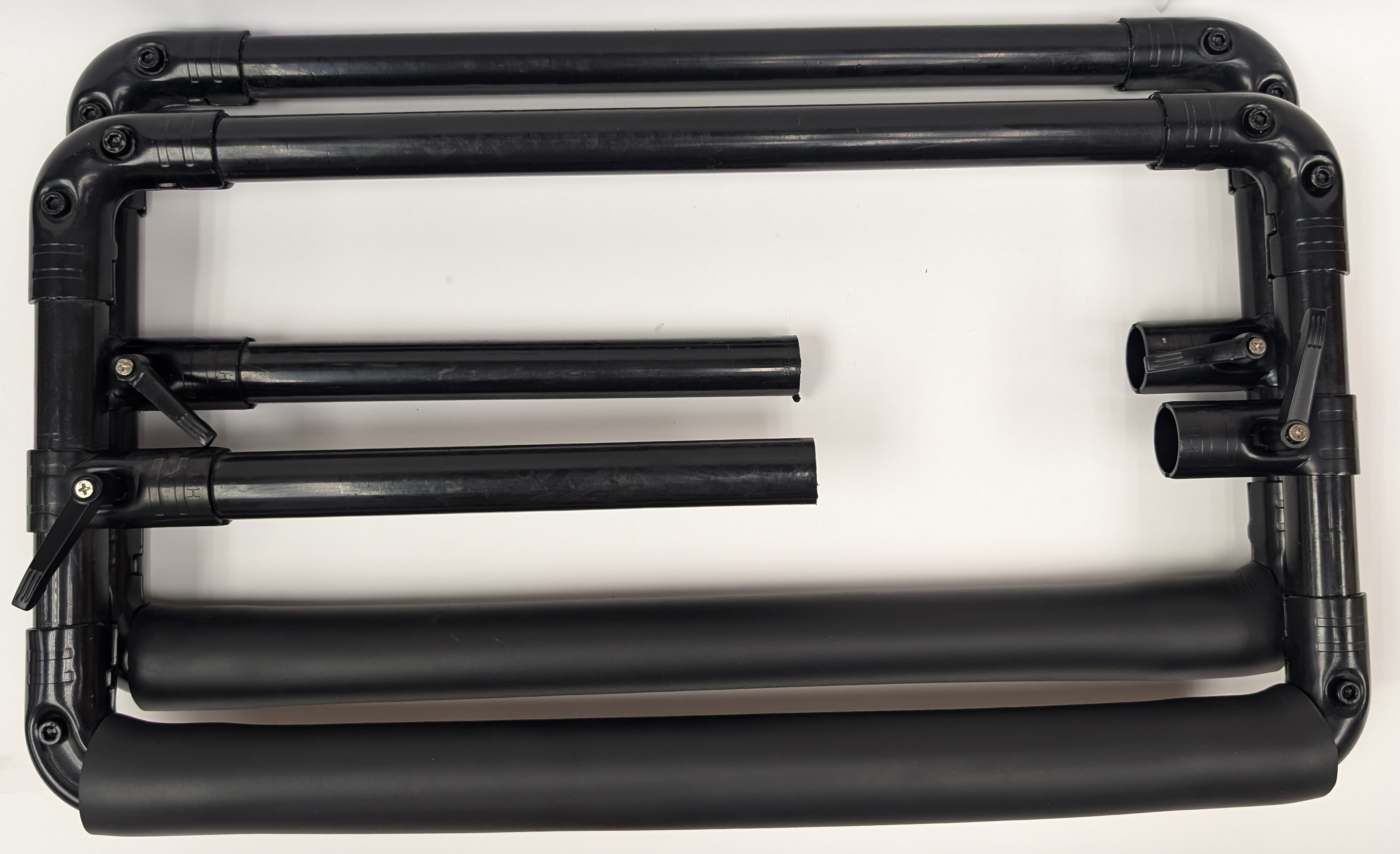

2004030046 qty 2 American Standard Power Cord for charger 0000000000 Tool Kit 0000000000 Floor stand
8004 010 024
D270 Echo Sounder Package (included with Apache 3 Pro)
$ 6,800
H127010112 D270-H Echo
Sounder 4103050015 D270 Transducer 2004030042 D270 Power cable
2004050068 D270 Power adapter(12V 4A) 0105000325 D270 DB9F/DB9F Serial port connection corss
cable(1m) 4103030010 DC Power Cable 4103010007 5-pin 1K connector to male BD9 cable
2004030031 USB-Serial Converter(USB 2.0 to RS232) 0103013420 D270 Stand
0103013460 D270 Extension rod (top) 0103013461 D271 Extension rod (middle)
0103013462 D272 Extension rod (bottom) 4106040107 D270 Packing outer carton
4106040106 D270 Packing trolley case
Rentals, Charter, Training
A $1,500 deposit is
required for rental and charter.
RENTAL
Apache 3 Pro, complete kit
Monthly Weekly Daily
Rentals are from the day after shipping until and including
the day of return. Training is not included with rental.
Data processing is not included with rental.
$ 8,000 $ 2,600 $ 900
CHARTER
Daily
Includes vessel rental, operator, data processing. Transit Rental (shipping time) +
Shipping + Travel: actual expenses
-call-
TRAINING
Day training at our Bozeman Montana
facility mission planning deployment download data prep, processing, export
[
